Milwaukee M18ONEFHPX 18V 32mm SDS Hammer c/w 2×5.0Ah Batt

Calculating latest stock
Code: 34374
Part No: M18ONEFHPX502MI
Order For Delivery
Select the required delivery time and method at checkout.
Stock Available:Good Availability
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
Good Availability
Out of stock
Good Availability
Out of stock
Good Availability
Out of stock
Good Availability
Out of stock
Good Availability
Out of stock
Milwaukee Madness Power Tools
Was £445.00Now £413.85 each
exc. VAT
Was £534.00Now £496.62 each
inc. VAT
Add to order

Product Overview

Manufacturer: Milwaukee

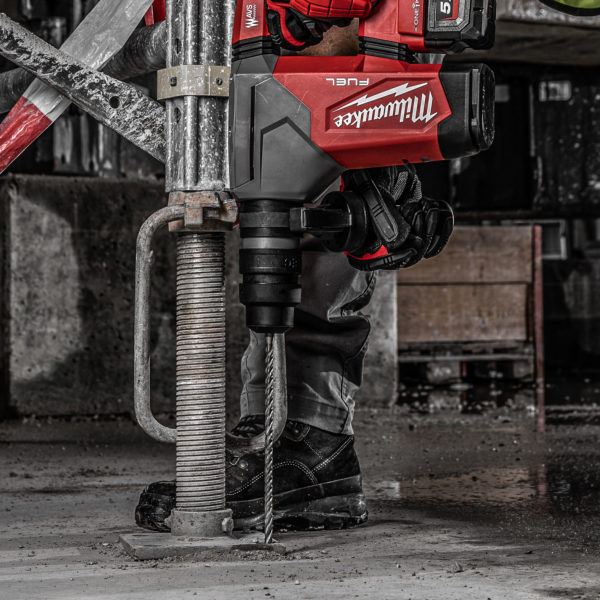

  • The Milwaukee M18ONEFHPX 18V One-Key 32mm SDS Plus Hammer Drill forms part of the Milwaukee 18V Fuel range, with the latest brushless technology and One-Key technology. The impressive Milwaukee M18 cordless platform is leading the way when it comes to performance and reliability for the industrial user.

    Smart tool, with One-Key technology, connects via Bluetooth to the One-Key app.


    Powerful hammer mechanism delivers 5.0 J (EPTA) of impact energy at low 6.9m/s2 vibrations.

    Drills up to 10 o18x100mm holes on a M18 High Output 5.0Ah battery charge.

    Autostop shuts down the tool to protect the user of sharp movement in bind up situations.

    One-key tool tracking & security offers a free of charge cloud-based tracking network and inventory management platform for your tools.

    One-Key also features a remote locking functionality.

    Fixtec system for keyless chuck changing between SDS-Plus and 13mm metal chuck.

    All metal gear case – optimum seating of the gears for enhanced tool life.

    4-mode operations: rotary hammer, hammer only and selectable work position of the chisel (variolock) for maximum versatility.

    One-Key …. unlocking the digital jobsite:

    Tool Control – configure tool settings for optimum performance and save custom settings to the tool’s memory.

    Tool Tracking – manage tool utilisation across the fleet of tools and identify or pinpoint your missing tools quicker.

    Inventory Management – enter and organise all tools in one central location for instant access to detailed records of all inventory.

    Tool Reporting – transfer time based tool performance data to the cloud and create pdf reports for specific jobs to submit to clients.


    Blow Energy(J): 5.0

    Blow Energy (EPTA)(J): 5.0

    Max Drilling: Concrete: 32mm, Steel: 13mm, Wood: 30mm

    Max Drilling Tunnel Bit: 75mm

    Max Percussion Rate: 0-4600BPM

    No Load Speed: 0-800RPM

    Optimised Drilling Capacity in Concrete: 8-24mm

    Battery Pack Capacity: 5.5AH

    Voltage: 18V

    Weight: 4.2kg

    Weight with battery pack: 5.2kg

    Sound power level (LWA)(DB(A)): 106.1

    Sound power uncertainty (DB(A)): 3

    Sound pressure level (LPA)(DB(A)): 95.1

    Sound pressure level uncertainty (DB(A)): 3

    Vibration Chiselling: 7.4M/S²

    Vibration chiselling uncertainty: 1.5M/S²

    Vibration Drilling: 6.9M/S²

    Vibration Drilling uncertainty: 1.5M/S²

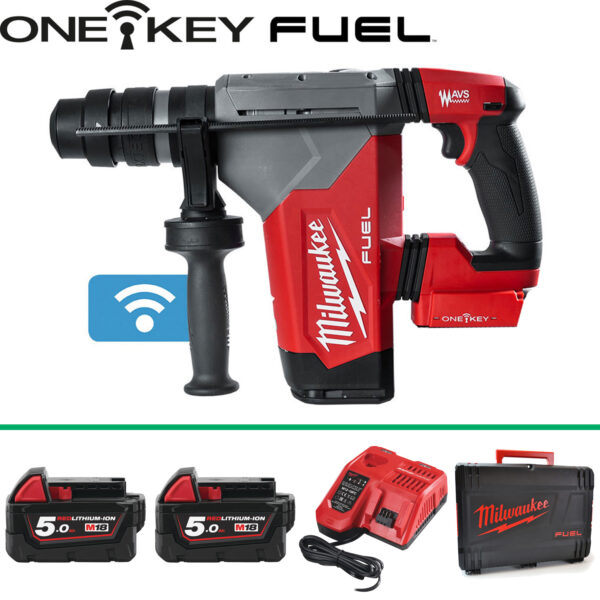

    Included as Standard: 2 x 18V (5.0Ah) Redlithium-ion Battery & M1218FC Charger.

    Exclusive 3 Years Warranty on all Milwaukee Power Tools including Batteries & Chargers when registered.
