Product Overview

Manufacturer: Milwaukee

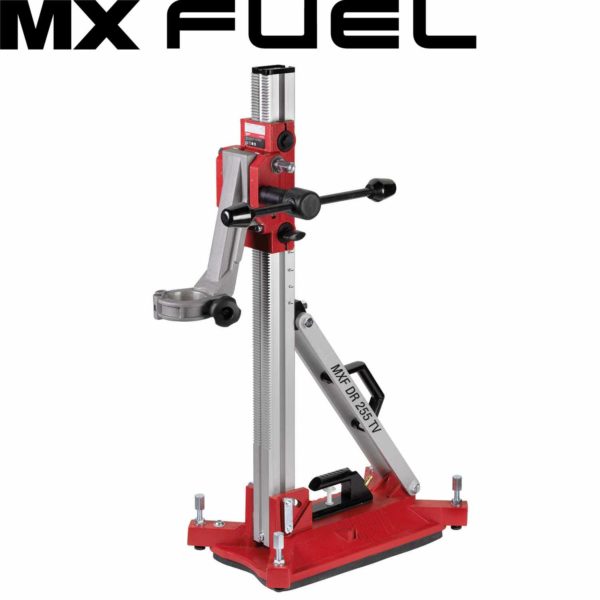

  • The Milwaukee MXF DR255TV Diamond Core Drill Stand is designed to work with the MX Fuel Diamond Core Drill. MX FUEL has been developed to provide the performance of corded and petrol products, but with the convenience of cordless battery technology.

    Height-adjustable insulated drive handle and easy to reach depth adjustment handle to facilitate a one-handed core drilling operation.

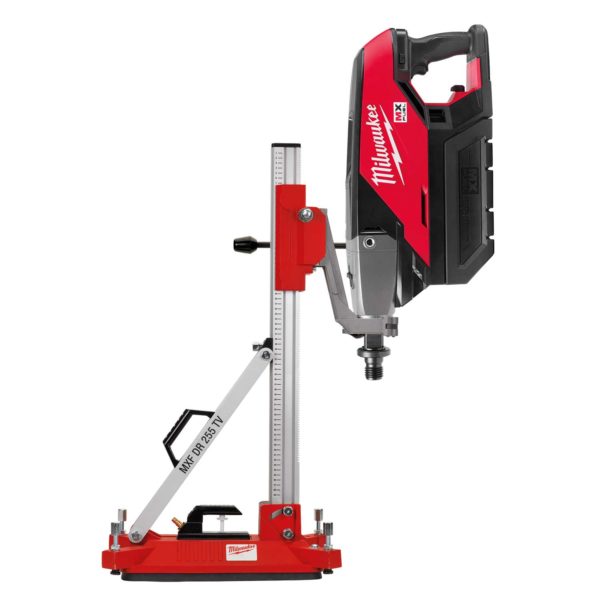

    Universal hinged motor clamp with 60 mm collar diameter; compatible with the MXF DCD150 diamond core drill and other brands with a 60mm diameter mount.

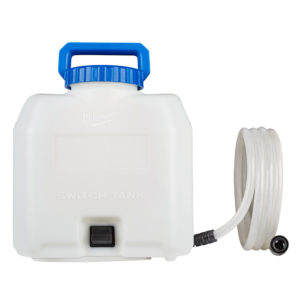

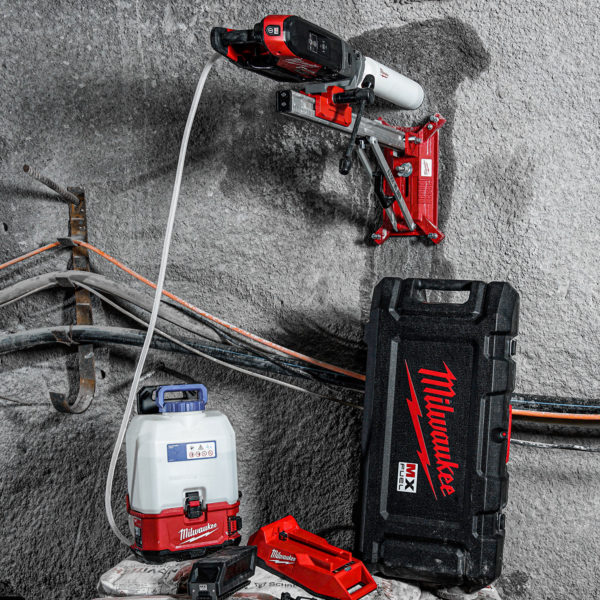

    Tool-free machine and water tank attachment compatible with M18 SWITCH TANK water supply.

    Extra-long column for drilling holes up to 250 mm diameter.

    Can be used with vacuum pump on smooth and even surfaces.

    Drill angle indication on the base plate; can be variably tilted from 0° to 45°.

    Adjustable sliding blocks.

    Lightweight and durable aluminium design.


    Angle capacity: 0 – 45°

    Base size: 276 x 467 mm

    Height: 892 mm

    Stroke length: 570 mm

    Max. drilling core bit: 250 mm diameter

    Weight: 13.2 kg

    Included at Standard: Concrete Fixing Kit, Vacuum rubber seal, 17 x 19 wrench, 6 mm hex key, 8 mm hex key & Universal 60 mm quick connect motor bracket.

    2 Years Warranty on all Milwaukee MX FUEL Tools, Batteries & Chargers when registered.
