Optrel Clearmaxx & E3000X PAPR Package

Calculating latest stock
Code: 73105
Part No: 4900250OPT
Order For Delivery
Select the required delivery time and method at checkout.
Stock Available:Good Availability
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
£984.57 each
exc. VAT
£1,181.48 each
inc. VAT
Add to order

Product Overview

Manufacturer: Optrel

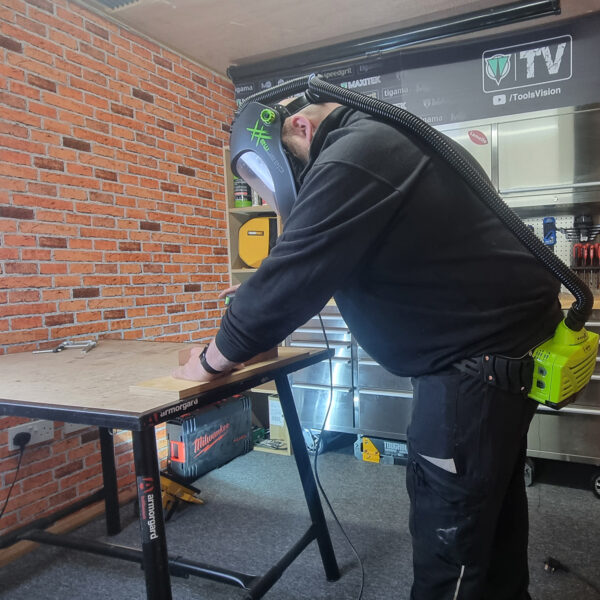

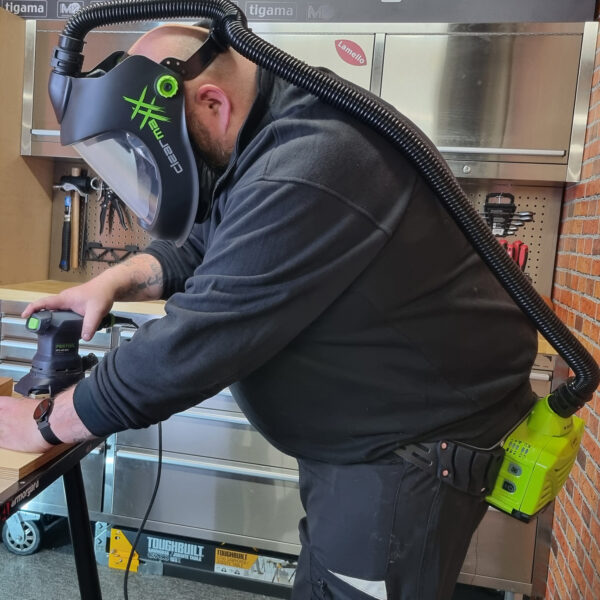

  • The Optrel Clearmaxx & E3000X package combines the Optrel Clearmaxx PAPR grinding visor and E3000X TH3P rated PAPR system, which is ideal for sanding, grinding, routing and cutting operations.

    Work safely with a dust free PAPR system offering full face impact protection.

    Meets TH3 standards which only allow a maximum particulate ingress of 0.2%. Further protection from organic, inorganic, acid vapours and gases is also available by adding the optional A1B1E1 combination filter.

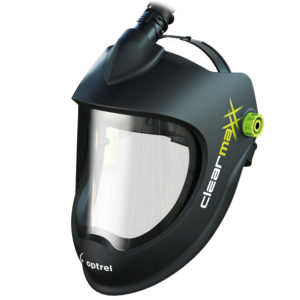

    Clearmaxx visor

    The Optrel Clearmaxx PAPR face shield brings high levels of comfort and a full 180° field of vision.

    With an EN166 Optical class of 1 and BT rated Impact and temperature protection, the Clearmaxx visor offers excellent visibility and full face protection. As part of a PAPR system, face fit testing is not required making it ideal for use in metalworking and woodworking environments when protection from fine dusts is required, such as sanding, grinding and routing, no more trouble with beards!

    A rotary knob can be used to divert 20% of the cool air on to the forehead, especially useful when working in warm environments.

    Optrel Clearmaxx is suitable for gas and plasma cutting when fitted with a shade level 5 visor, shade level 3 visors are also available.

    Compatible with Optrel Clearmaxx peel-off visor protectors and Optrel IsoFit Headgear cradle.


    Classification: EN166 Optical class = 1, EN175 Mechanical strength = BT

    PAPR helmet standards: EN 166 / EN 169 / EN 170 / EN 12941:1998 TH3P.

    Weight: 495 grams

    E3000X PAPR

    Many tasks such as grinding, sanding, and routing, produce large amounts of fine dust particles, which can cause long term respiratory illnesses. Other applications such as spraying, painting or working with solvents can also be harmful and therefore need protecting against. When paired with the correct filter, the Optrel E3000X PAPR system is a highly effective, comfortable and economical solution for operators working in these environments where respiratory protection is essential.

    The Optrel E3000X powered air purifying respirator works by using a high powered motor to draw air through a high efficiency filter. Clean air is supplied to the operator through a breathing tube and compatible headtop from within the Optrel range. This positive pressure air delivery inside the selected headgear prevents any outside contaminants from entering, thus the wearer is protected. A major advantage of positive pressure air delivery is that it negates any face fit testing as the mask is not sealed to the face, breathing is also easier as the motor is pulling air through the filter and not the lungs. A continual flow of cooling air – up to 240 litres per minute, improves wearer comfort and increases productivity, especially during manual labour.

    Unlike many PAPR systems which work to the TH2P standard, allowing 2% of particulates to enter the mask, the Optrel range of powered air purifying respirators meet the highest level of dust and particulate protection available – TH3P. This elevated protection allows just 0.2% of particulate ingress offering 10 X better filtration when compared to some other powered respirators.

    During welding, an increase in ozone concentrations can cause an unpleasant odour resulting in headaches or even nausea, this can be alleviated by adding the optional Mountain Breeze odour filter or A1B1E1 combination filter.

    Should the pre or main filter become blocked during operation, an audible alarm is sounded and  the fan speed is reduced to the next lowest setting in order for immediate works to continue. Failure to address the saturated filter will eventually trigger a shut off device in the system.

    Key features

    ATEX Zone 2 certified – Hazardous gas, vapour and mist.

    ATEX Zone 22 certified – Hazardous dust and powders.

    ATEX is an abbreviation of ATmosphere EXplosible and relates to the safety of tools and equipment that are used in environments where explosive atmospheres can occur.

    Up to 18 hours of battery life.

    Brushless motor.

    Very high air flow and long run time rates:

    Level 1: min. 170 l/min, 18 hours

    Level 2: min. 210 l/min, 16 hours

    Level 3: min. 240 l/min, 13 hours

    Spark trap and Pre-filter system dramatically reduces running costs by sparing the main filter from heavy contamination.

    Audible alarm alert: blocked filter and no filter inserted.

    Built in flow sensor negates a manual air flow check as with other PAPR systems.

    Weight: 1560 grams including filter, belt and battery.

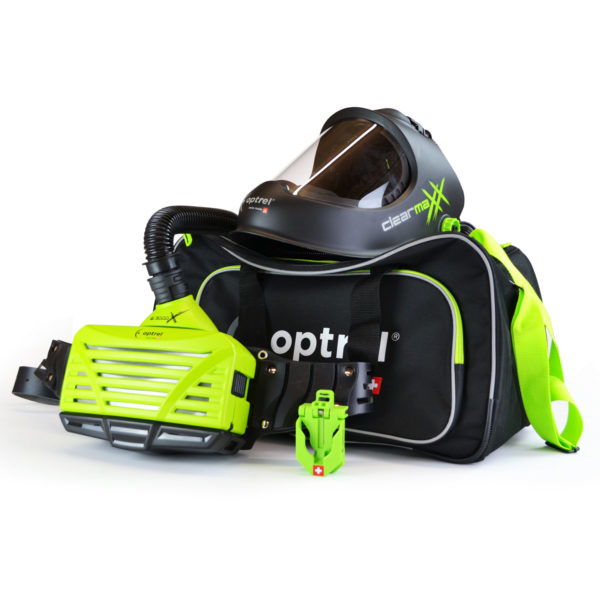

    Included as Standard: Blower unit with hose, TH3P R SL Filter, 18h LI-ion Battery, Leather belt, Universal charger, Parking buddy, Optrel Clearmaxx Grinding Visor, Bag.

    Warranty: E3000X – 2 years from date of sales for manufacturing and material defects, 6 months warranty for battery.
