Optrel Crystal 2 CLT PAPR Welding Helmet & Swiss Air Package

Calculating latest stock
OPTREL CRYSTAL 2.0 & SWISS AIR
Code: 73949
Part No: 4600040OPT
Order For Delivery
Select the required delivery time and method at checkout.
Allow 7-10 days for delivery
Spend over £30+vat for a FREE GIFT
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
Derby
0 in stock
Out of stock
Nottingham
0 in stock
Out of stock
Burton
0 in stock
Out of stock
Mansfield
0 in stock
Out of stock
Chesterfield
0 in stock
Out of stock
£1,328.94 each
exc. VAT
£1,594.73 each
inc. VAT
Add to order

Product Overview

Manufacturer: Optrel

  • The Optrel Crystal 2.0 CLT PAPR ADF Welding Helmet & Swiss Air Package is the result of many years of research in lens technology. Achieving a world’s first non-reactive brightness level of 2, allows welders to experience a totally clear view of their surroundings and working material. Clarity and colour representation of the weld pool is now at a new level, previously thought unachievable in a welding helmet.


    Optrel set the world record for a non-reactive brightness level and have surpassed this once more with the Crystal 2.0. Light transmission in the inactive state is now 31%, representing the closest thing to normal surroundings from an auto darkening filter.

    Crystal lens technology allows the welder to see how the weld pool melts and watch the weld seam being created. The position of the welding torch is instantly recognisable, clearly identifying where the weld needs to start and finish – ideal for intricate welding operations.

    Heat-reflecting silver paint helps to reduce the temperature inside the helmet. Coupled with the Optrel E3000X PAPR system, the operator can work comfortably – even in warm working environments.

    Sensor slide: Set the sensor detection angle individually to your requirements.

    A patented eccentric adjustment feature allows the operator to increase or decrease the gap between the face and the mask with just one twist, maximising comfort and eliminating glare.

    Twilight ADF technology allows the eyes a smoother transition back to normal light conditions. This exclusive technology reduces eye fatigue and discomfort, most noticeably in continuous welding applications.

    Sensitivity Function prevents the ADF lens from being prematurely activated in certain lighting environments or if a number of welders are working in close proximity.

    Comfort headband distributes weight evenly to reduce back and neck strain.

    Grinding mode: The brightest and clearest vision ever achieved by a welding helmet when used in sanding and grinding applications.

    Fields of Application:

    Elektrode Welding (Stick Welding, SMAW)

    MIG/MAG (GMAW)

    GMAW High melting rate process

    Flux Cored Wire Welding

    TIG Welding (GTAW)

    Plasma Arc Welding

    Micro Plasma Arc Welding

    Plasma Cutting

    Grind Mode

    EN379 classification:

    Optical class: 1

    Scattered light: 1

    Homogeneity: 1

    Angular dependence: 2

    Shade levels

    Non-reactive shade level: 2 – perfect for grinding applications

    Manually activated:4-12

    Automatically activated: 4-12

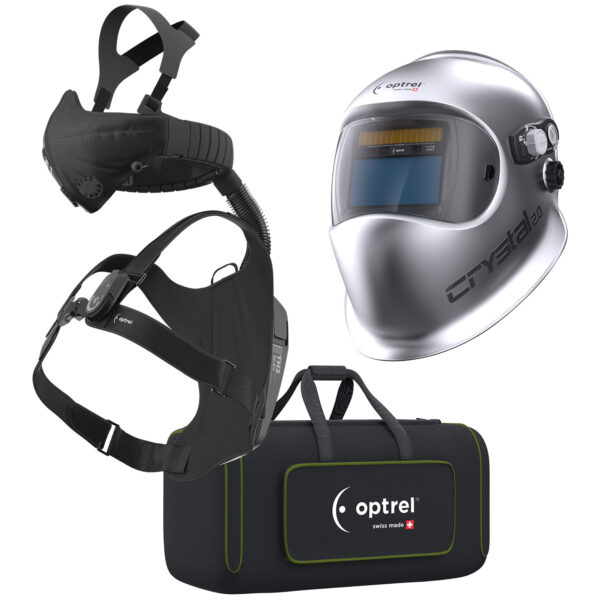

    Included as Standard: 1 x Crystal 2.0 Helmet + Swiss air Respiratory Protection System Complete with Control Panel, Comfort half mask: consisting of half mask and hose system, 1 x Head and neck strap, Blower unit, Shoulder harness, Charger & Storage bag.

    Exclusive 3 Years Warranty on all Optrel Welding Helmets excluding Batteries when registered.
