Optrel Panoramaxx CLT PAPR ADF Welding Helmet 2/4-12

Calculating latest stock
OPTREL PANORAMAXX CLT PAPR ADF HELMET
Code: 73349
Part No: 4441781OPT
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:2
Spend over £30+vat for a FREE GIFT
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
Derby
2 in stock
Out of stock
Nottingham
0 in stock
Out of stock
Burton
0 in stock
Out of stock
Mansfield
0 in stock
Out of stock
Chesterfield
0 in stock
Out of stock
£738.82 each
exc. VAT
£886.58 each
inc. VAT
Add to order

Product Overview

Manufacturer: Optrel

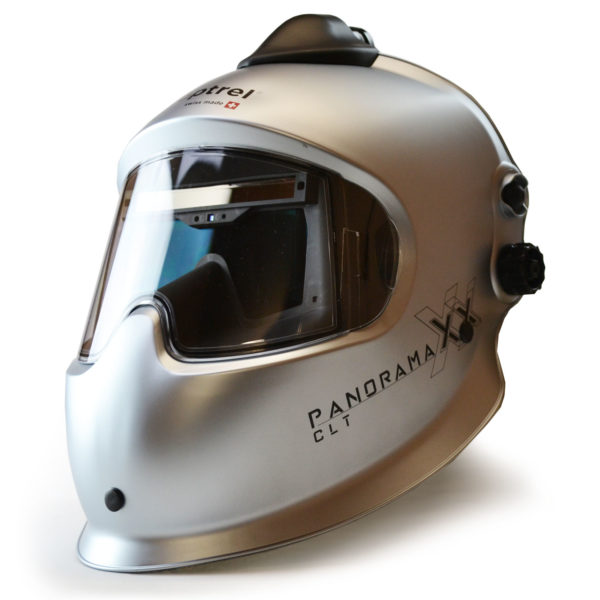

  • The Panoramaxx CLT PAPR ADF Welding helmet delivers a totally clear and panoramic view by combining the Panoramaxx range with Crystal Lens Technology. The worlds first non-reactive light shade of 2 is the closest thing to looking through a clear glass window, when in dark state the clarity of the weld pool offers detail not seen before on a PAPR auto darkening welding helmet. Designed to be paired with the Optrel E3000X PAPR TH3P system, offering the highest levels of protection against fine dust, fumes, mist and spores as well as ozone odours, acidic gases, organic and inorganic vapours when fitted with the optional A1B1E1 filter.


    Features:

    Traditionally, increasing the welders peripheral vision meant increasing the size of the auto darkening filter. Although a simple solution,  it made the helmet larger and heavier, compromising comfort and reducing the time the operator could wear the helmet before neck strain and fatigue set in. By designing an auto darkening filter with a nose cut out, Optrel is able to bring the ADF closer to the eyes, enlarging the field of vison by an incredible 600% without adding any extra weight or size, creating the Panoramaxx concept.

    Shadetronic ® The patented Optrel Shadetronic technology features on the entire Panoramaxx range of welding helmets. It is of critical importance that the correct shade is selected in order to provide the adequate protection when welding. Unfortunately, this process is often neglected meaning that shade levels are never adjusted, compromising performance and safety. Shadetronic sensors permanently measure the intensity of the welding arc, regulating the level of protection automatically across the entire range of shade levels from 4-12 . Optimal protection is achieved without ever needing to adjust the welding helmet. Shadetronic technology is ideal for hot start at the beginning or during the crater fill, slope out at the end of the welding process, or simply when welding with different current strengths.

    Fadetronic is patented Optrel technology which manages the ADF’s changes from dark to light after the welding process has been completed. This eliminates the unpleasant afterglow associated with slope out or high-ampere applications. Eye fatigue is significantly reduced thanks to the fluid opening of the display, allowing the eyes to adapt back to light more gradually.

    The Optrel Panoramaxx range has a total of 5 arc sensors – one central and four corner mounted, ensuring the auto darkening glare shield is activated and deactivated perfectly, even in the most difficult lighting conditions and positions during welding.

    Like most Optrel welding helmets, the products in the Panoramaxx series have a grinding mode which is easily activated by a robust and well-protected pressure switch. When in grinding mode, the auto darkening filter remains in non-reactive light shade, allowing sanding and grinding tasks to be undertaken. Once the ADF is re-activated the helmet is ready for welding, thus your Optrel Panoramaxx becomes a true multifunctional work safety device.

    The unique and environmentally friendly Optrel re-charge energy concept ensures that the welding helmet remains charged and ready for use. Thanks to the latest solar technology, a rechargeable lithium-polymer battery is recharged by welding light or ambient light. In addition, the battery can also be charged directly with any USB charger via a micro-USB interface. Battery replacement is avoided and the environment is protected.

    Sensitivity Function prevents the ADF lens from being prematurely activated in certain lighting environments or if a number of welders are working in close proximity. The Super High sensitivity setting can used if the welding current is extremely low preventing the ADF from activating.

    The shells of the Panoramaxx range of welding helmets are designed using aerodynamic deflective technology. Due to their smoke and particle repellent shape, the Panoramaxx range of welding helmets can be used during overhead welding applications.

    True colours can be seen by the welder thanks to the specially developed UV / IR filter on the Panoramax CLT.

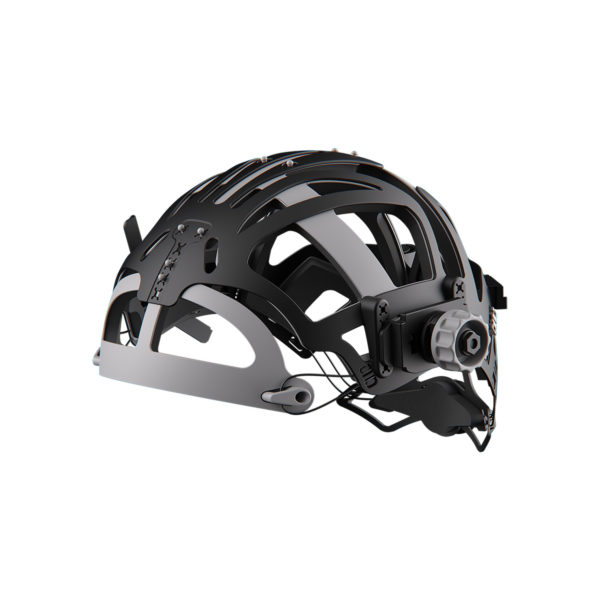

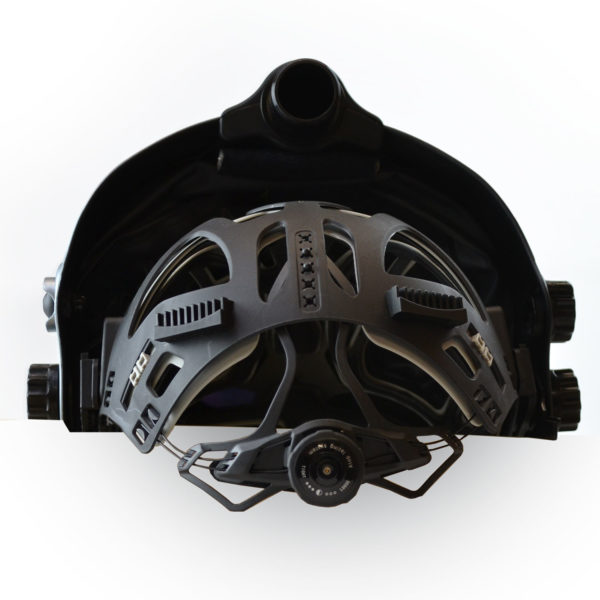

    Optrel IsoFit Headgear

    Standard inside all versions of Panoramaxx welding helmets is Optrel IsoFit; the ultimate in wearer comfort. The IsoFit cradle is the only head band available that enables the wearer to adjust width, length and height simultaneously, with the turn of a single rotary wheel. An ingenious cable hoist system expands and contracts to give a glove like fit, applying equal pressure at every contact point. This ensures there is no pinching, slipping or chafing, offering unrivalled comfort and practicality.

    IsoFit is the perfect companion if you have to weld for long periods of time or need to work in multiple positions and want the helmet to remain in place. Despite the headband or cradle being the interface between the helmet and the wearer, it is often overlooked by manufacturers and users alike. The Optrel IsoFit headgear system combines technology and comfort, resulting in improved productivity and safety in welding applications.

    Weight of only 780 grams.

    EN379 classification:

    Optical class: 1

    Scattered light: 1

    Homogeneity: 1

    Angular dependence: 2

    Shade levels

    Non-reactive shade level: 2 – Ideal for grinding applications.

    Manually activated shade levels: 8-12

    Automatically activated shade levels: 4-12

    Included as Standard: Welding helmet, Optrel IsoFit® Headgear, bag, micro USB cable, front cover lens.

    Exclusive 3 Years Warranty on all Optrel Welding Helmets excluding Batteries when registered.
