Spit Drop In Anchors

Calculating latest stock

Klarna 0% finance available on orders over £99+vat

Product Overview

Manufacturer: Spit

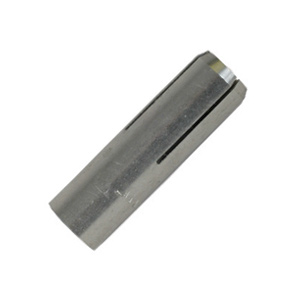

  • Steel drop in anchor with white zinc coating.


    Extremely versatile female internally threaded hammer set anchor. For use in concrete and solid stone; this anchor can be used with all types of bolts, machine screws and studding. Often used for hanging drop rods from ceilings, the anchors can also be used in floors with countersunk machine screws for achieving a flush finish with handrail brackets. Available in stainless steel on request.

    Used in mechanical & electrical trades, heating & ventilation, shopfitting and general construction.

    Non-flammable steel fixing which conforms to BS 7671:2018 – 18th edition; for supporting wiring systems using materials which are unlikely to collapse prematurely in the event of a fire.



    Code

    Thread Diameter

    Anchor  Length

    Thread Length

    Drill Bit Size

    Min. Drill Depth

    25300

    M6

    30mm

    13mm

    8mm

    32mm

    25301

    M8

    30mm

    13mm

    10mm

    32mm

    25302

    M10

    40mm

    15mm

    12mm

    42mm

    25303

    M12

    50mm

    18mm

    15mm

    53mm

    25304

    M16

    65mm

    23mm

    20mm

    70mm
