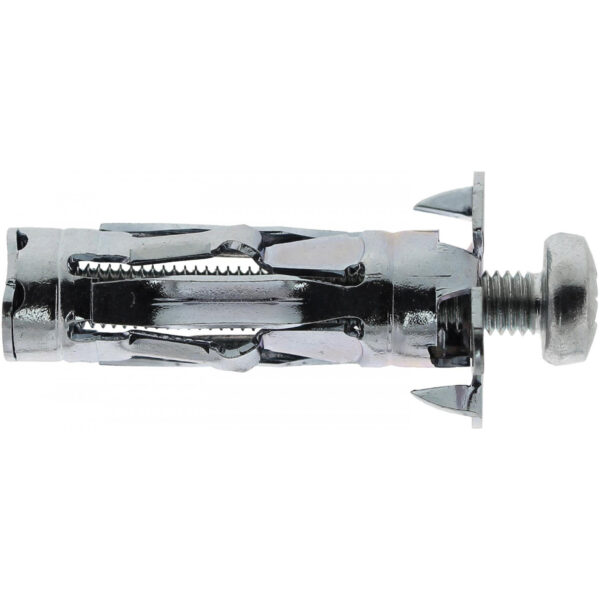

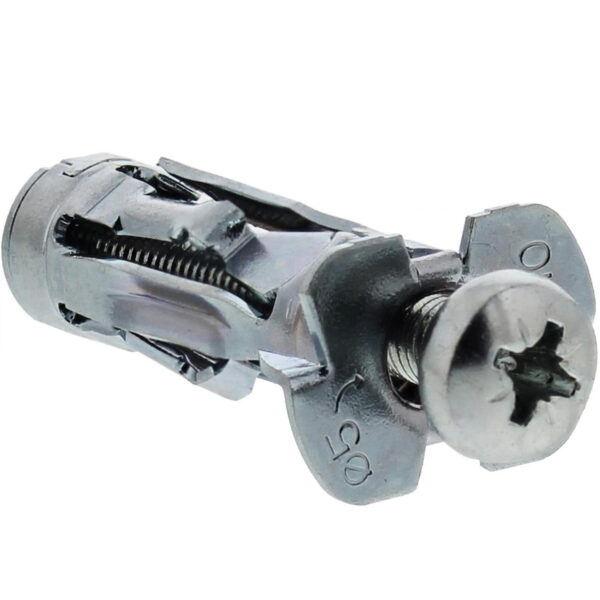

The unique, patented design of the Stellix multi thickness cavity anchor eliminates the need to carry various sizes of plasterboard fixings, as a single size works with 3/8” (9.5mm), 1/2” (12.5mm) and 15mm thick plasterboard. With a maximum capacity of 26mm, the Stellix hollow wall anchor can also be used when walls and ceilings are double boarded with 12.5mm plasterboard. As the anchor length is only 35mm long, it prevents the fixing colliding with the other side of narrow stud walls. Stellix can be set using a cavity wall anchor expanding tool, hand or cordless screwdriver. Knowing that you will be able to achieve a safe and secure fix in hollow building materials or any thickness of plasterboard, makes Stellix a convenient and safe choice for electricians, builders, kitchen fitters, plumbers and mechanical trades. Suitable for use on plasterboard, hollow concrete block, hollow clay brick and aerated concrete.
Specifications 25007:
Screw diameter – M5 PZ2
Anchor length – 35mm
Screw length – 40mm
Drill diameter – 10mm
Max Fixture thickness:
10mm plasterboard – 20mm
12.5mm plasterboard – 18mm
> 12.5mm – 15mm
Max load: 10mm & 12.5mm plasterboard – 20KGS
Max load: 25mm plasterboard – 45KGS
Specifications 25984:
Screw diameter – M4 PZ2
Anchor length – 35mm
Screw length – 40mm
Drill diameter – 8mm
Max Fixture thickness:
10mm plasterboard – 20mm
12.5mm plasterboard – 18mm
> 12.5mm – 15mm
Max load: 10mm & 12.5mm plasterboard – 15KGS
Max load: 25mm plasterboard – 40KGS
