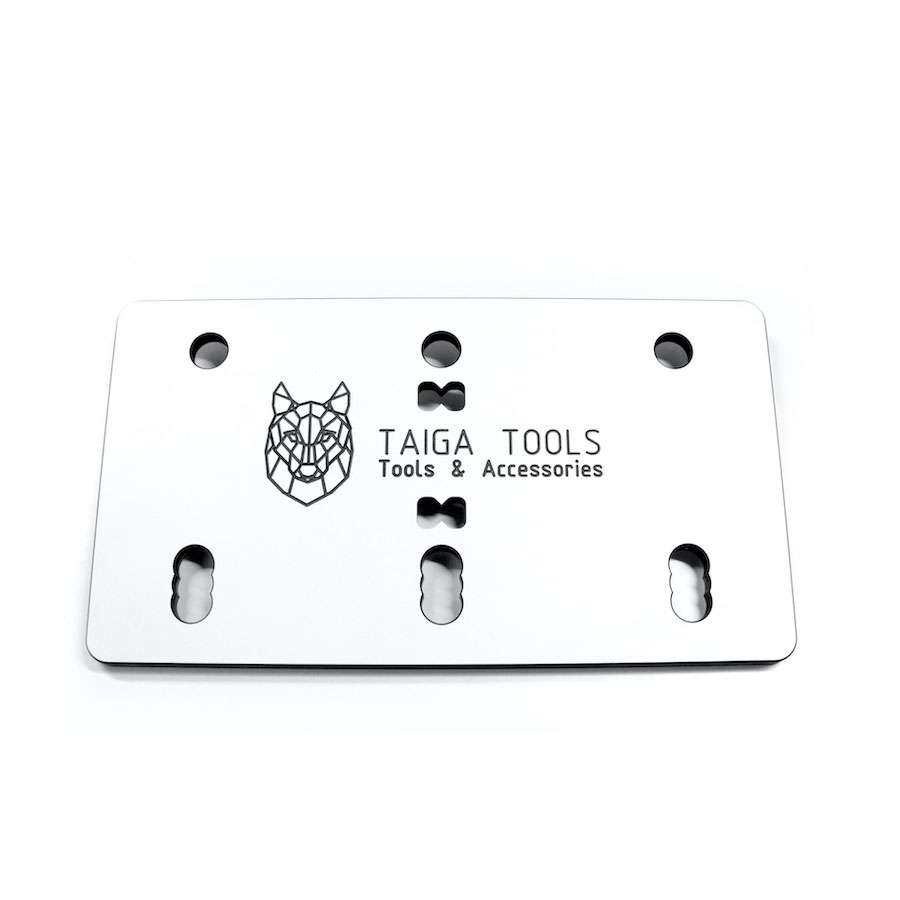

Taiga Tools Cabineo Router Template
The Taiga Tools Cabineo Router Template allows you to create fast and easy pockets and matching holes for the Lamello Cabineo connectors, by use of a 24mm copy ring, 15mm and 5mm/8mm router bits and a plunge router.
The Cabineo Router Template works with presets and is made for material thickness of 16, 18, 19 and 22mm.

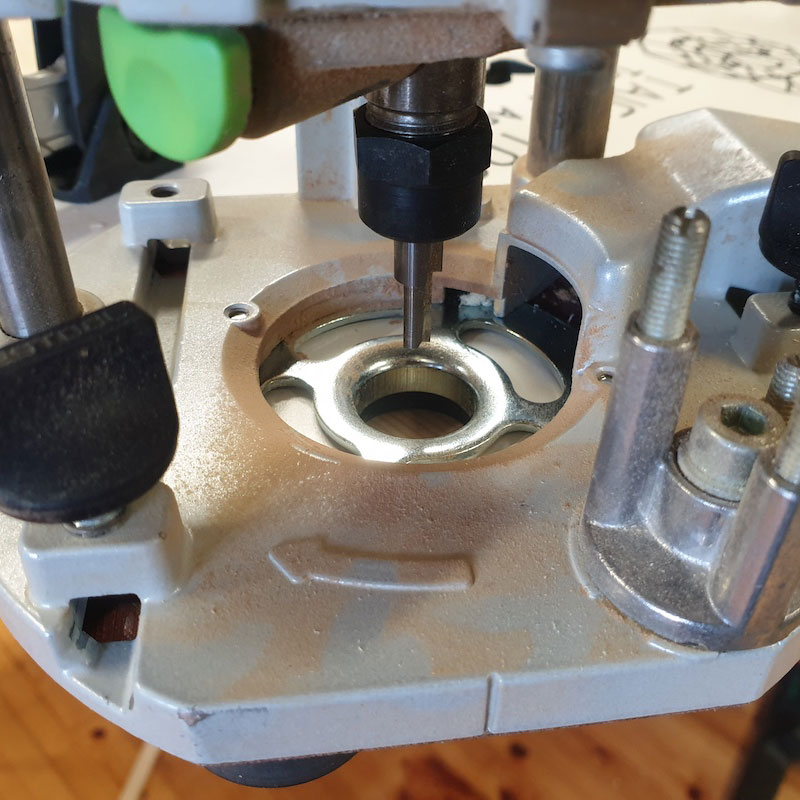

The Router Template is made for a 24mm copy ring. Every brand/model has different tolerances so there might be little bit of play or tightness with the copy rings. Use the supplied abrasive sponge and/or sandpaper to rub around your copy ring or inside the holes of the template to get the perfect fit. If your copy ring is VERY loose, then use the supplied tape to wrap around your copy ring to fill the difference.
To create the pockets and matching holes, you need a 15MM plunge router bit for connector pockets and a 5mm (Cabineo 8/12) or 8MM (Cabineo 8 M6) for the matching connecting holes.

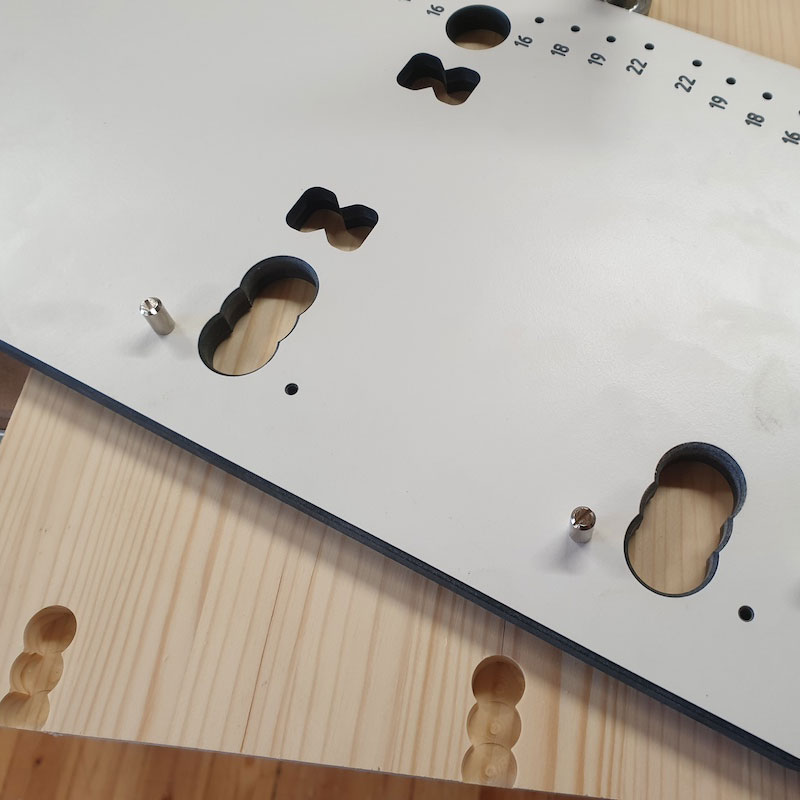

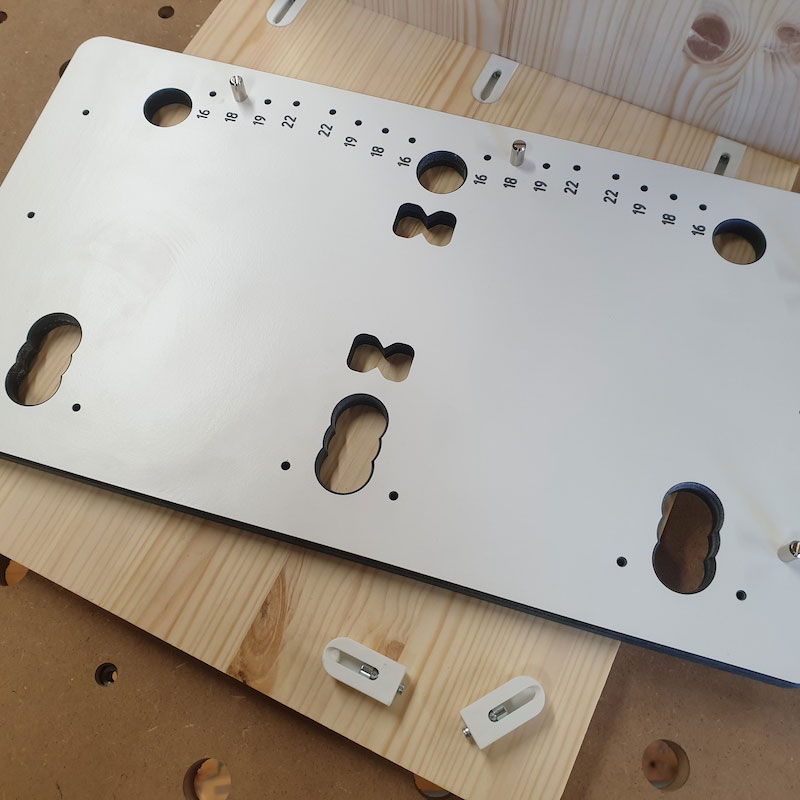

The router template uses presets for all holes. From the edge/side the preset distance is 37MM on both sides. The middle ones allow you to located the template sideways to any position you like. For the matching connecting holes. Your preset thickness are 16, 18, 19 and 22MM. Use the supplied M4 dowel pins to insert in the template for the desired alignment. Do not use a screwdriver, only by hand.
