Toughbuilt TBHS24LLM150R1 360° Rotary Laser & Receiver Kit

Calculating latest stock
TOUGHBUILT ROTATING LASER & RECEIVER
Code: 16602
Part No: TBH2S4LLM150R1T
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:4
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
Derby
2 in stock
Out of stock
Nottingham
0 in stock
Out of stock
Burton
1 in stock
Out of stock
Mansfield
1 in stock
Out of stock
Chesterfield
0 in stock
Out of stock
Extra Savings On ToughBuilt
Was £459.00Now £403.92 each
exc. VAT
Was £550.80Now £484.70 each
inc. VAT
Add to order

Product Overview

Manufacturer: ToughBuilt

  • The ToughBuilt TB-H2-S4-LL-M15-0R-1T Rotating Construction Laser & Receiver was designed to offer benchmark precision and a durable, Pro-grade performance package with everything Pros need for leveling in bright daylight and extreme lengths when doing large-scale outdoor leveling, surveying, and landscape grading.


    Features:

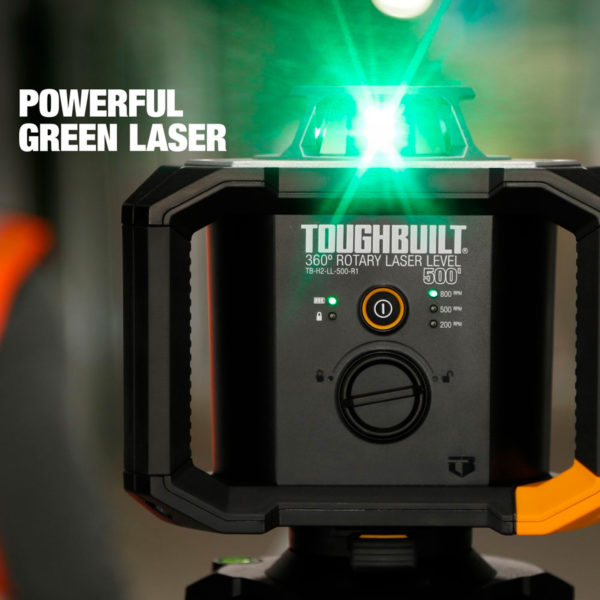

    Brilliant, viridian green laser beam remains visible in daylight conditions and detectable up to 500ft (with ToughBuilt® Laser Reciever).

    Automatic horizontal self-leveling for quick and easy set-up.

    Rolling laser receiver offers direct bracket-free attachment to grade rod and adjusts quickly for rapid, accurate readings.

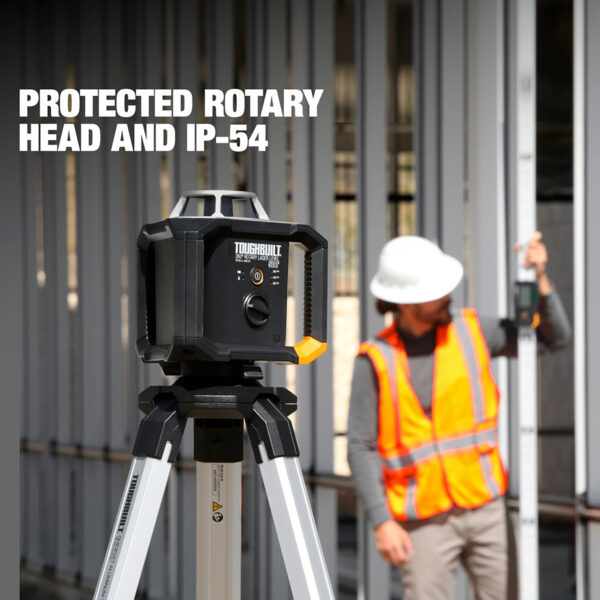

    Protected rotary head cage and IP-54 weatherproof design deliver increased durability for harsh jobsite environments.

    A locking, self-leveling mechanism enables inclined applications and protects the instrument in storage.

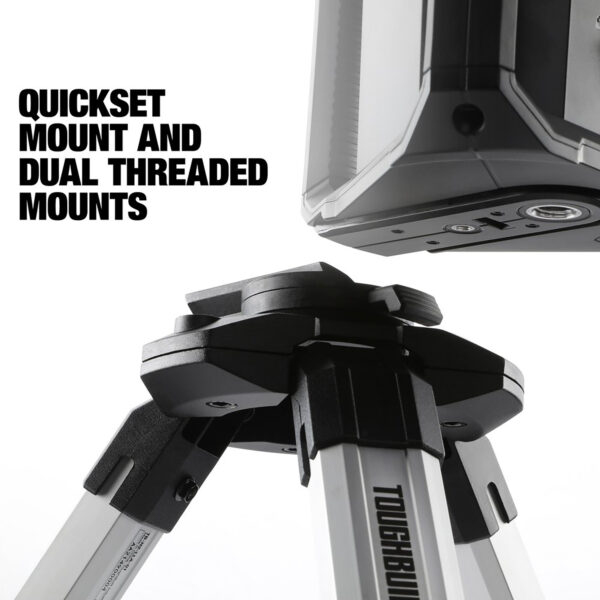

    Innovative Quickset mount locks the laser onto the tripod with ease.

    8′ Aluminum Grade Rod features full-length uniform width, allowing the Rolling Laser Receiver to effortlessly glides up and down the grade rod without resetting.

    Specification:

    Light Sources: Pendulum diode with laser wavelength of 500-540 nm

    Laser Safety Class: Class 3R, <5 mW

    Leveling Accuracy: 9 mm at 30 m

    Self-Leveling Range: ±3.5°

    Range with Detector (Diameter): Up to 239 m*

    Laser Beam Color: Green

    Debris Protection: IP54

    Operating Temperature: -10 to 50°C

    Storage Temperature: -20 to 70°C

    Power Source: 1.5V AA batteries (included)

    Operating Time: 11 hours

    Mounting Receptacle: a) Dove Tail slide mount with lock b) 1/4"-20 thread c) 5/8"-11 thread

    Dimensions (W x H): 210 mm x 163 mm

    Weight (without batteries): 1.57 kg

    *Range achieved only with ToughBuilt Receiver, model TB-H2-LLA-30 (included).

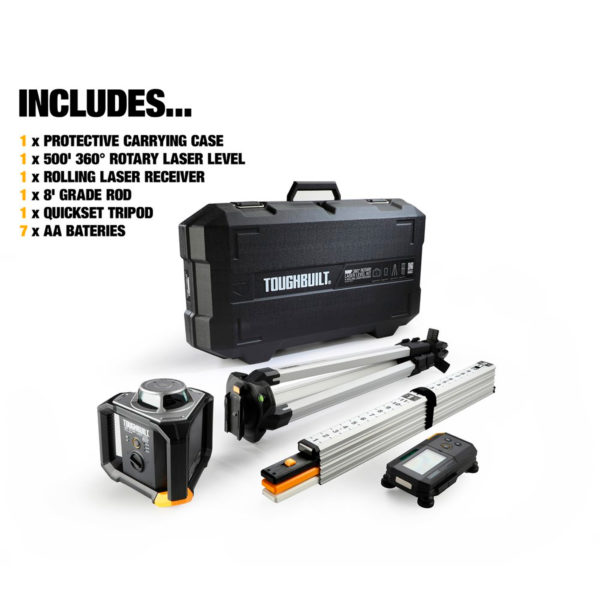

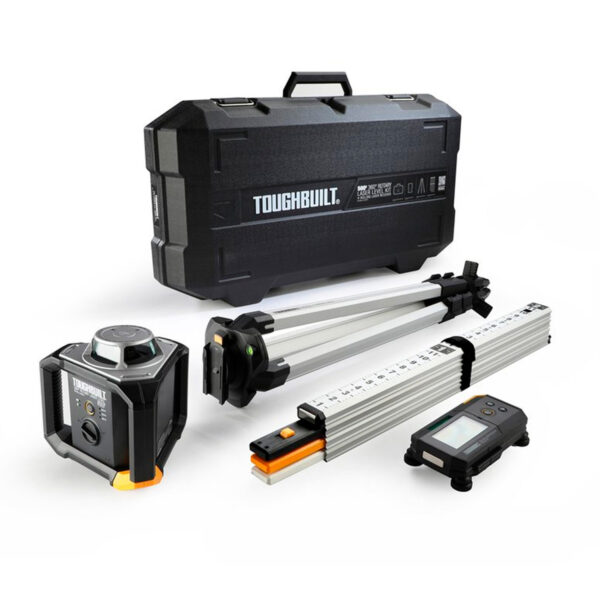

    Included as Standard: Tripod, Laser receiver, Grade rod & Protective carrying case.

    Genuine ToughBuilt accessory from an authorised partner: TB–H2-54-LL-M15-OR-IT

    3 Years Warranty on all ToughBuilt Measuring Equipment when registered.
