Trend PH/JIG/BS Mini Single Pocket Hole Jig

Manufacturer: Trend

• Trend PH/JIG/BS is a portable mini Pocket Hole Jig Kit for fast and accurate joining of timber, plywood and board materials.




  Read more

  Designed to be used for new joints, repair work and with different thicknesses of materials.

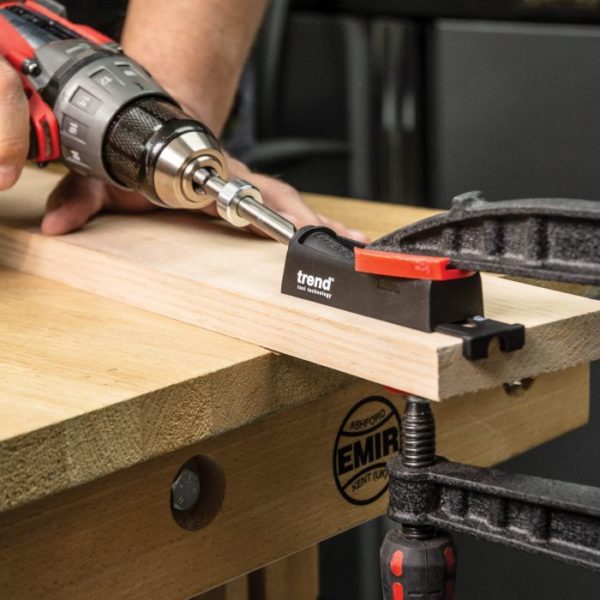

  Portable jig for drilling single 9.5mm pocket hole joints.

  Lightweight glass-fibre reinforced nylon construction with full-length, hardened drill guide bushes.

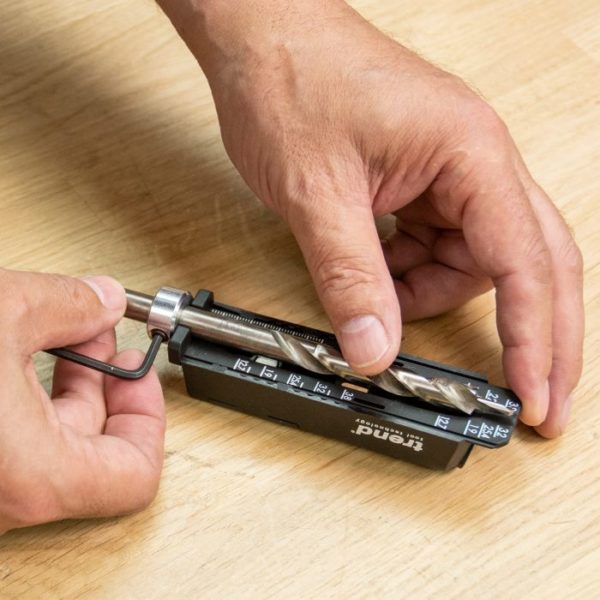

  Unique drill depth setting system for fast set-up on materials from 12.7mm to 38mm.

  Perfect for narrow repairs in difficult to access areas.

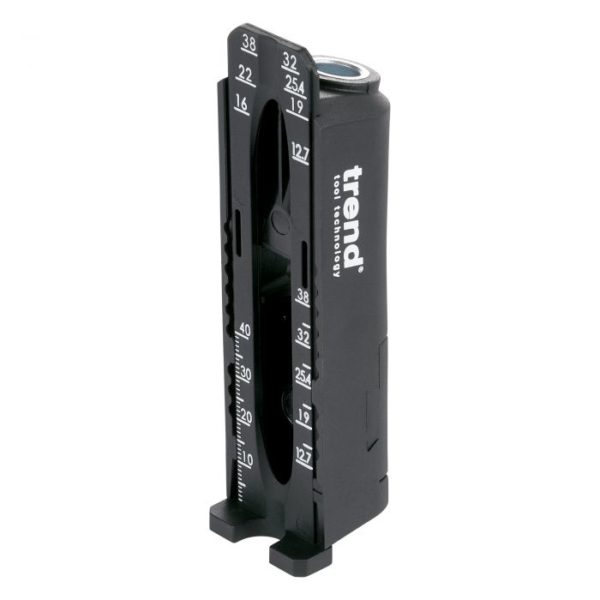

  Material thickness gauge allows rapid checking of material thickness, without the need for a tape measure.

  Pre-set depth gauge adjusts the pocket position to suit the timber thickness.

  Full length hardened drill guide bushes ensure accurate drilling and long service life.

  Woodchip relief holes helps protect against clogging inside the drilling guides.

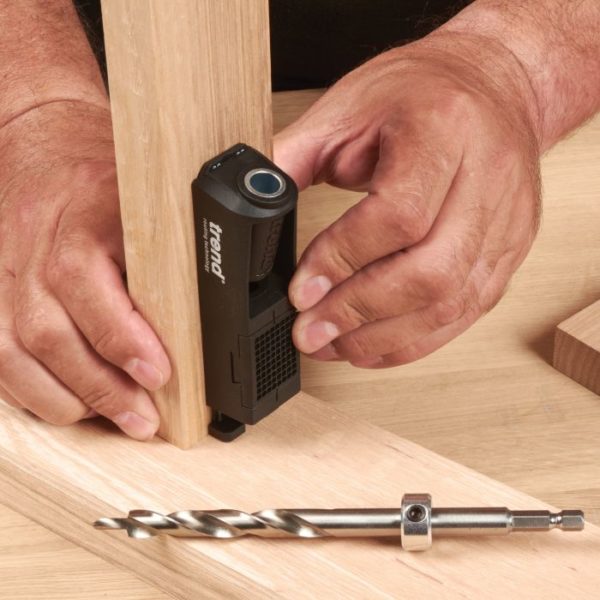

  Flip-over end stop allows the jig to hook over for an external joint, or butt up to an edge for an internal joint.

  Specification:

  Min. material thickness: 12.7mm

  Max. material thickness: 38mm

  Drill diameter: 9.5mm

  Drilling angle: 15 degrees

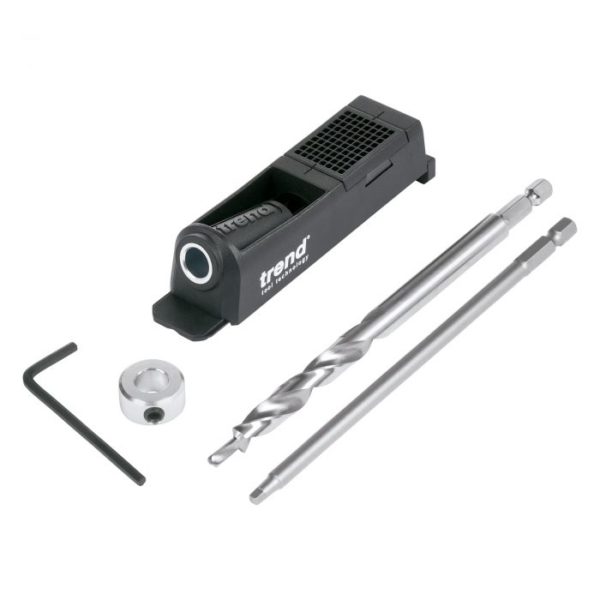

  Included as Standard: 10x assorted screws, HSS drill bit with collar, 150mm square drive bit, adaptor plate & hex key.
