Festool DF500 RQ Plus Domino Jointing Machine

Manufacturer: Festool

• Every wood joint has its perks. The Festool DF 500RQ is part of the The Festool DOMINO jointing system, which is made up of the joining machine and DOMINO dowels. The unique pendulum routing action of the DOMINO carves out precise, twist-proof elongated holes. The DOMINO dowel combines the strength of slot and mortise joints with the flexibility of flat dowels. Perfect for both delicate and hefty workpieces, whether inside or out.




  Read more

  Features:

  Precise: One-of-a-kind pendulum milling principle for accurate, effortless work.

  Quick and easy: Built-in stop pins for repeating dowel placement.

  Stable: Super stable and twist-proof joints thanks to the unique shape of the DOMINO dowel.

  Versatile: DOMINO plugs come in various sizes from 4 x 20 mm to 10 x 50 mm and in two types of wood for indoor and outdoor use.

  Sorted: The routing depths are just right for the dowel lengths and panel materials.

  Flexible: The DOMINO core connectors and furniture fittings let you create sturdy furniture setups that can be taken apart again.

  System: Accessories are a perfect fit for the whole DOMINO system.

  Cool stopping system.

  The upgraded guide frame gives you more flexibility, and the column guide provides extra stability. There are four stop pins for precise positioning, so you can skip all that fuss with measuring or marking.

  Not flat. Not round. Simple DOMINO.

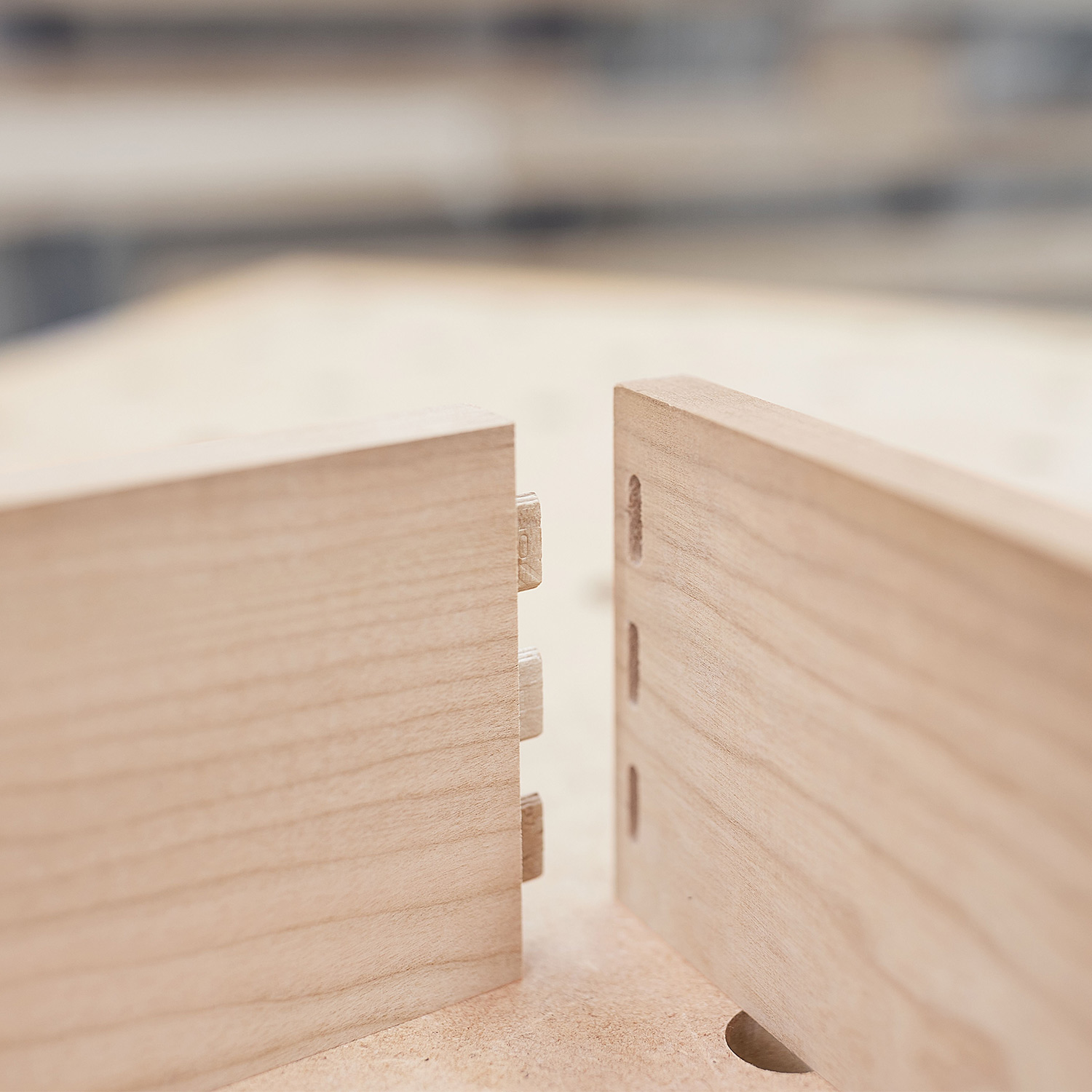

  With the DF 500, you can cut DOMINO dowels to fit perfectly or with a bit of play. Their unique oval shape means they’re super sturdy and won’t twist, right from the first dowel. They mix the precision of round dowels with the flexibility of flat ones. You can get them in various sizes for both delicate and hefty workpieces.

  One-of-a-kind DOMINO system.

  The DOMINO system features dowels made from two types of wood, perfect for both inside and outside use. Machine accessories like round and trim stops really broaden what you can do with it. The connecting fittings give you those solid connections you’re used to and can be popped apart quickly if you need to.

  Pendulum cutting principle

  Unique to manual machines: the routing motion of the DOMINO Joining machine. The simultaneous rotation and pendulum action of the cutter makes working smooth and creates a precise elongated hole. Thanks to the pendulum movement, the cutters don’t overheat, giving them an incredibly long lifespan.

  Innovative stop system

  Dowel positioning made easy: Starting from a reference edge or a previously routed DOMINO hole, you can quickly and precisely set up the router using the four built-in stop pins – you can even create dowel groups!

  Maximum stability

  The unique shape of the DOMINO dowel, along with the expanding glue pockets and side grooves, provides a really secure hold. With the Festool Joining machine, you can work with DOMINO dowels sized from 4 x 20 mm to 10 x 50 mm. They’re also available as customisable material.

  100% rotation-proof

  Right from the first DOMINO the joints are completely secured against rotation – without aligning the workpieces.

  Also fixable

  The DOMINO connectors are just right for building frames and cabinets. They stand out thanks to their sturdy build and the extra tightening range. If needed, you can quickly take them apart again.

  DOMINO system accessories

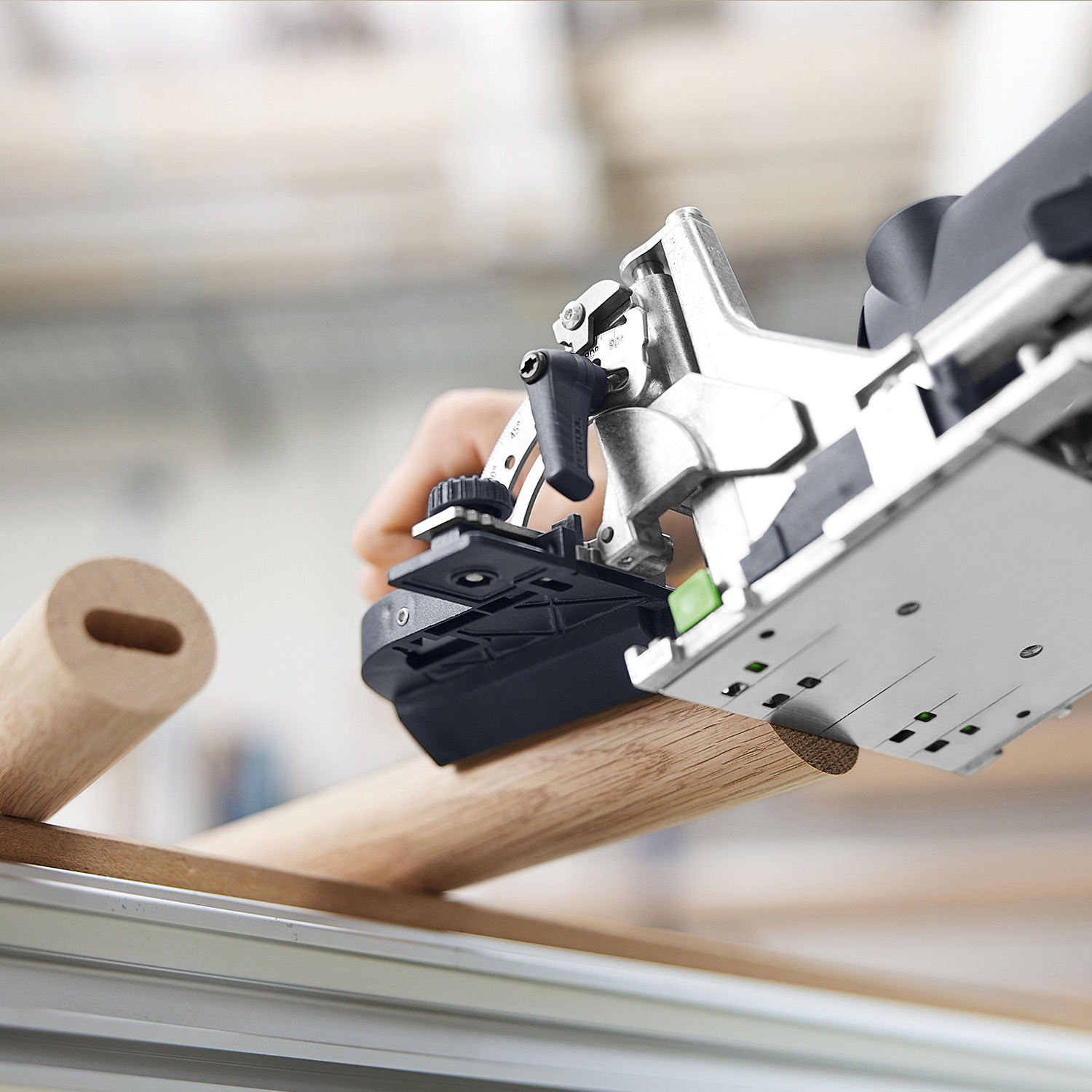

  Perfectly joining round and square woods, consistent hole spacing or frame joints: We’ve got the right system accessories – compatible with all DOMINO routing.

  For inside and out

  DOMINOs are available in two materials: Beech for interior applications and weatherproof, insect- and mould-resistant sipo DOMINOs for outdoor applications.

  Even for the tiniest bits of work

  Thin workpieces from 12 mm up can be easily joined with our smallest 4 x 20 mm DOMINO dowels – perfect for drawer sides.

  Choose your long-hole width

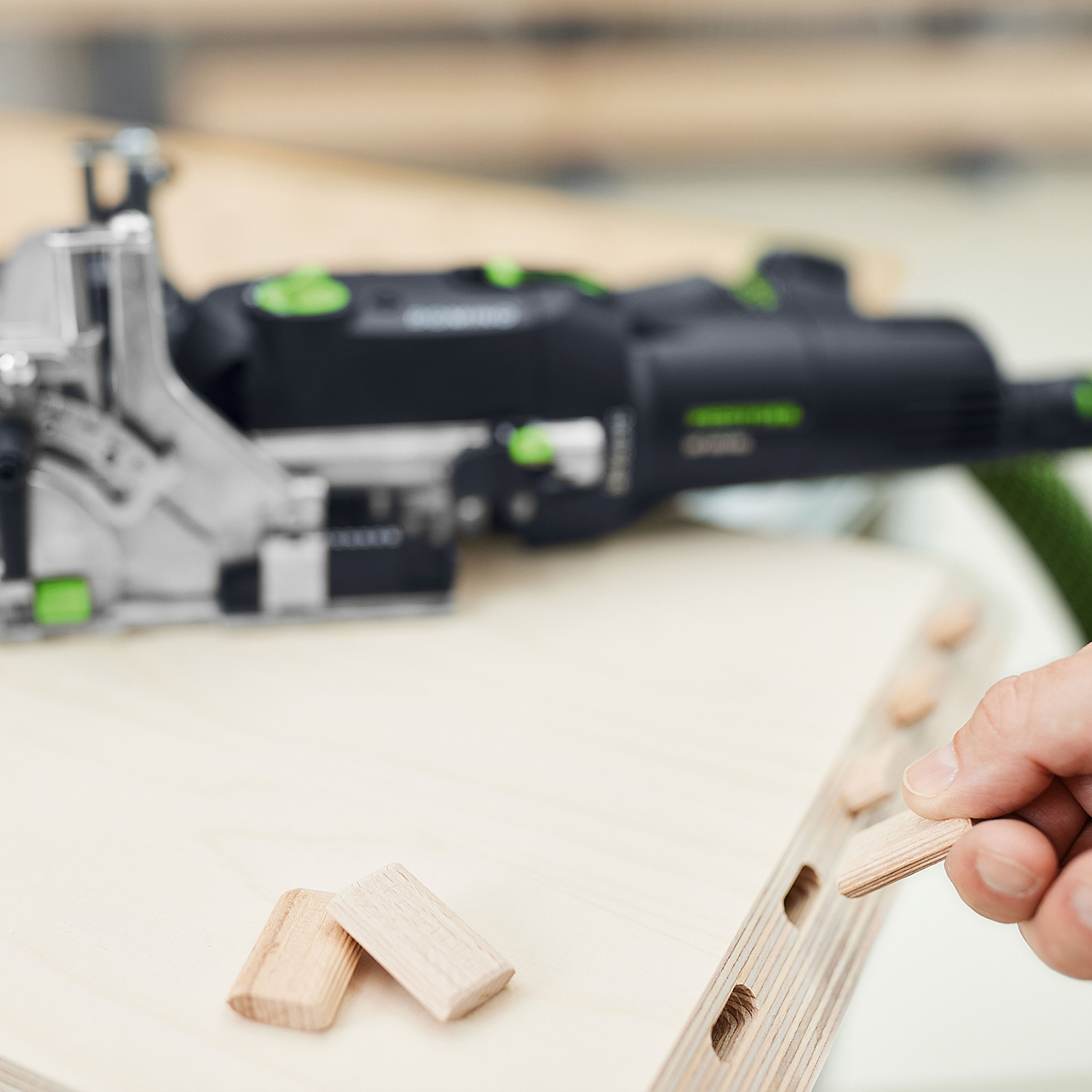

  The first DOMINO goes in through a precise elongated hole, and the next DOMINOs are routed through wider ones with a bit of wiggle room. This way, any misalignment can be sorted out, and the joint sits perfectly flush.

  Routing depths set for dowels

  The routing depth stop lets you set preset routing depths of 12 mm, 15 mm, 20 mm, 25 mm, and 28 mm. These depths are perfectly matched to the dowels and panel materials.

  Mitre joints

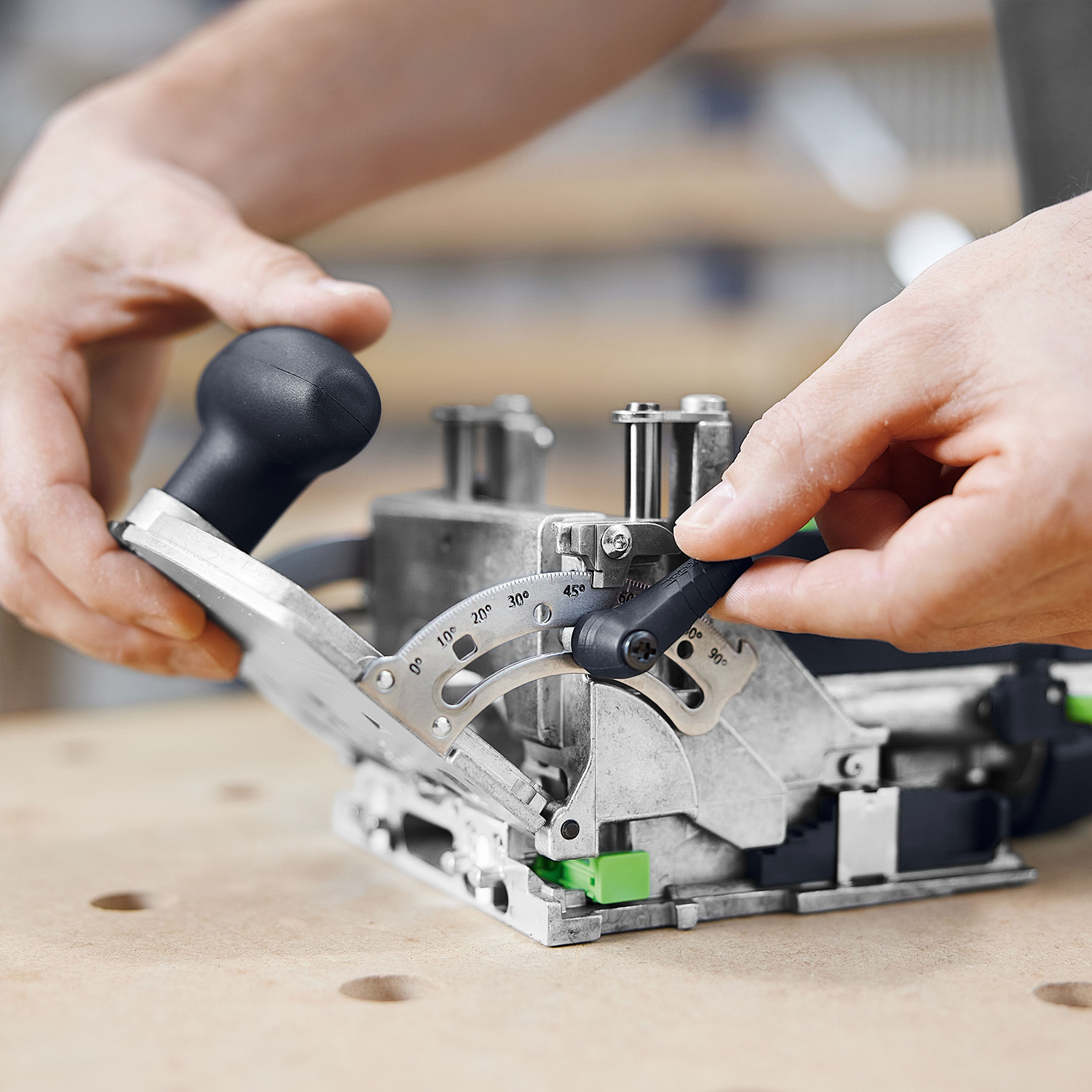

  The routing angle of the Joining machine can be adjusted smoothly anywhere from 0° to 90°. The snug-fit dowels help keep the workpiece perfectly aligned while gluing.

  Working with extraction

  When you’re working with the DOMINO Joining machine, you’ll end up with a lot of chips. To make chip removal from the routing hole easier and keep things precise while you’re routing, we recommend a mobile dust extractor.

  578465/578464 Specification:

  Power type: Mains

  Power consumption: 420 W

  No-Load Speed : 25,500 rpm

  Depth stop for routing depth: 12, 15, 20, 25, 28 mm

  Max. routing depth: 28.00 mm

  DOMINO slot cutter dia.: 4, 5, 6, 8, 10 mm

  Routing height adjustment: 5 – 30 mm

  Mitre routing: 0 – 90 °

  Dust extraction connection diameter: 27 mm

  Cable length: 4 m

  Product weight without accessories: 3.60 kg

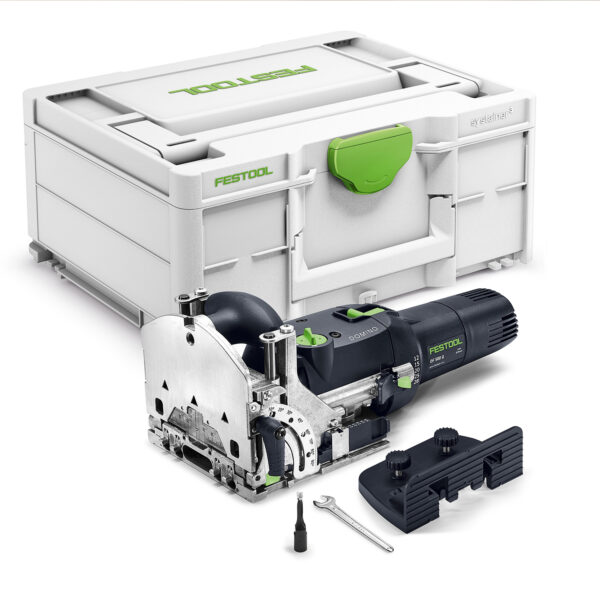

  Included as Standard: DF 500 RQ-Plus, DOMINO router bit, Open ended spanner, Additional stop ZA-DF 500/700, Plug It cable, SYS3 M187 Systainer

  3 Years Warranty on all Festool Power Tools when registered.
