Festool MFK700 KA EQ Plus Module Edge Router
Product Overview
Manufacturer: Festool
-
The Festool MFK700 KA EQ Plus Router is optimised for routing plastic and veneered edges perfectly flush. The specially developed chip deflector optimises the dust extraction, ensures streak-free results thanks to the integrated ball bearing brake and acts as a guiding aid when flush trimming angled edges. This means that you are ready to make the perfect edge.
Read more
Specialist: Edge router for flush trimming and rounding off those annoying edges.
Dream team: Spot-on addition to the Edge bander CONTURO KA 65.
Guidance aid: The chip deflector helps out when you’re flush trimming those angled edges from 0° to 45°.
Setting: Easy and accurate to 1/10 mm for adjusting the routing depth.
Universal: You can use all standard cutters (up to 32 mm in diameter) with the 8 mm collet.
Hard fibre base runner: Stops your workpiece getting damaged. Great glide and super scratch-resistant!
Big Support: 130 mm router table support for spot-on routing results.
Cutter change: Quick and easy thanks to spindle stop.
Handy: Slim build, lightweight and a well-balanced centre of gravity.
Best dust extraction: Built right into the router table.
Speed control: You can tweak it individually depending on the material.
One-of-a-kind ball bearing brake: For a smooth ride.
Long-lasting: Keeping an eye on the motor’s temperature.
Applications:
Edge router specially designed for flush trimming and rounding protruding edges
Unique ball bearing guide brake ensures perfect, streak-free working results
Possible to flush trim 0-45° inclined edges (depending on cutter)
Features:
The perfect touch to our edge bander.
With a bigger base support for overhanging edges: perfect for flush trimming or rounding off those pesky edges. The ball bearing brake stops any damage to delicate edges.
More precision.
The long router table support with a handle in the perfect balancing position lets you guide it safely – without it tipping over. The depth adjustment, accurate to a tenth of a millimetre, guarantees spot-on routing results.
Antistatic dust extraction.
An integrated extraction channel in the wide support table whisks the chips away upwards. Static-charged, sticky plastic chips are efficiently sucked away.

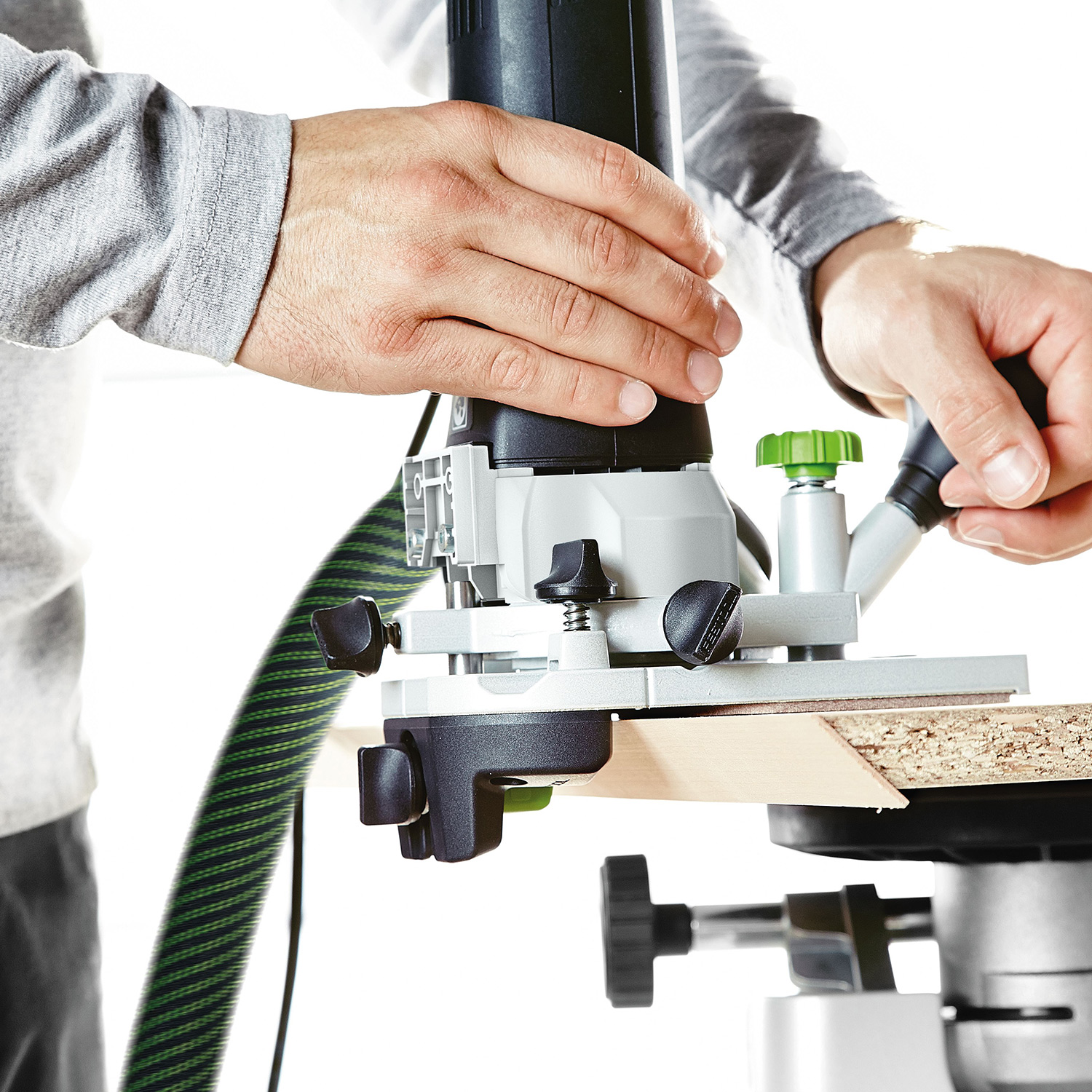

Stepped Router table
With a bigger base support for those overhanging edges: perfect for flush trimming or rounding off those pesky edges. The ball bearing brake stops any damage to delicate edges.
Spot on depth adjustment
The routing depth can be fine-tuned to a tenth of a millimetre. The user-friendly clamp handle stops the router table from shifting while you’re working.

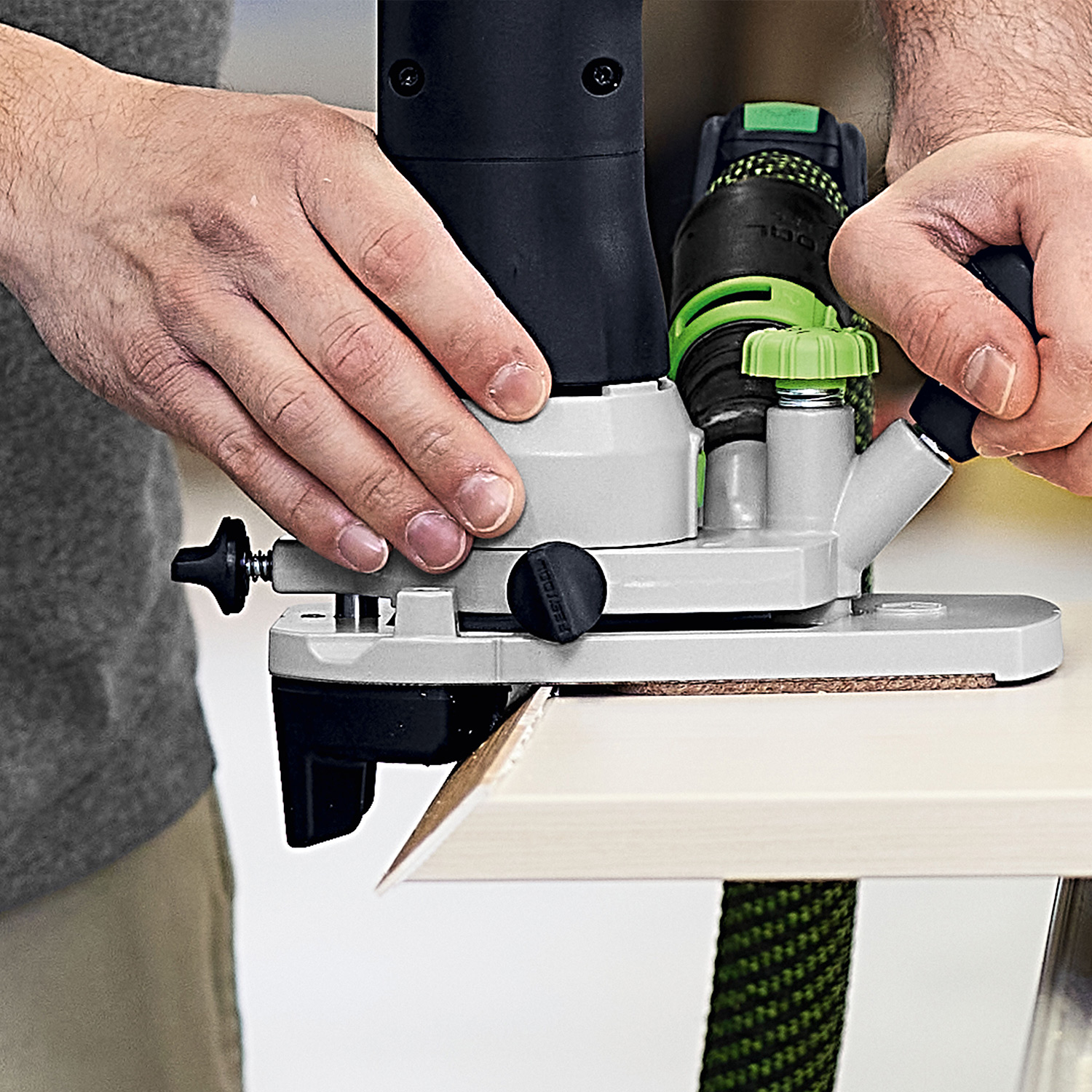

Flush trimming
The S8 HW MFK facing cutter can also be used to route edges flush, even for angled edges. The chip deflector is shaped so that it acts as a guiding aid, irrespective of the edge angle.

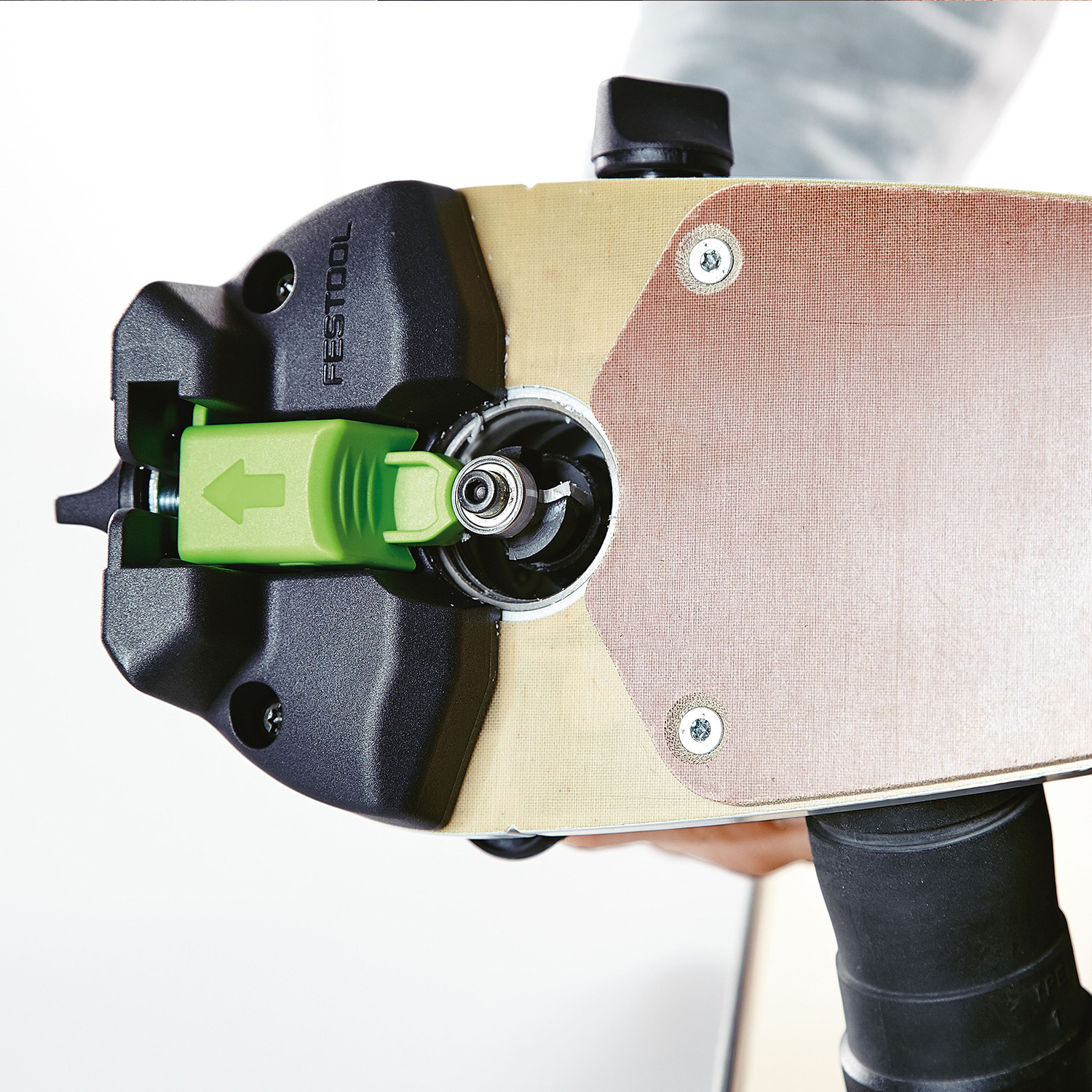

Cutter replacement in seconds
The router can be changed quickly and easily thanks to the spindle stop.
Antistatic dust extraction
An integrated extraction channel in the wide support table whisks the shavings away upwards. Statically charged, sticky plastic shavings are sucked up effectively.
Speed control adapted to the material
With the MMC electronics, you can quickly tweak the speed to match the material you’re working with, and it stays steady when under load. Plus, the motor’s temperature monitoring helps ensure it lasts a good long while.
For quick device changeover
Thanks to the plug-it system, the device can be changed quickly – directly via the cable and not via the socket or extractor: One cable for all devices. And even if the cable breaks, it can be replaced quickly without any problems.
Specifications:
Power: Mains
Power consumption: 720 W
Idle engine speed: 10 000 – 26 000 rpm
Collet dia.: 6 – 8 mm
Cutter stroke (fine-tuning): 14.00 mm
Max. cutter diameter: 32.00 mm
Dust extraction connection diameter: 27 mm
Cable length: 4.00 m
Product weight without accessories: 1.90 kg

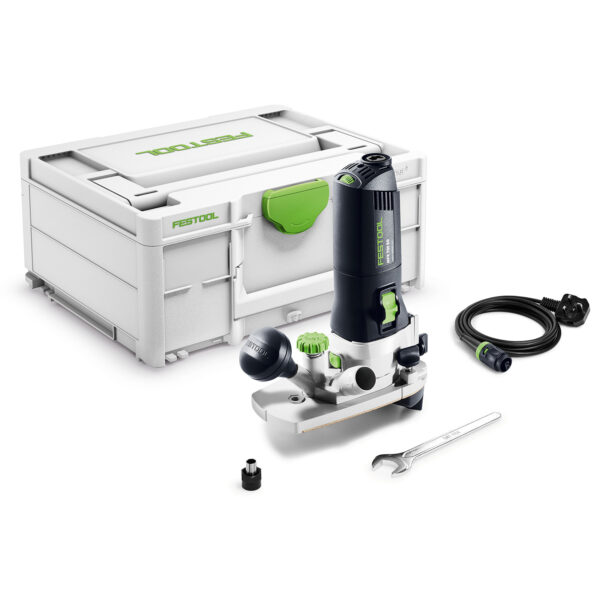

Included as Standard: MFK 700 KA EQ-Plus, Collet SZ-D 8/OF 1010, Open ended spanner, Plug It cable, SYS3 M187 Systainer
3 Years Warranty on all Festool Power Tools when registered.
