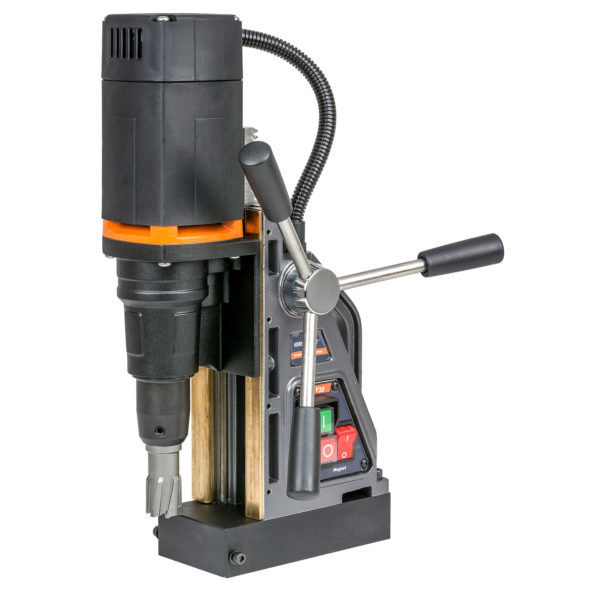

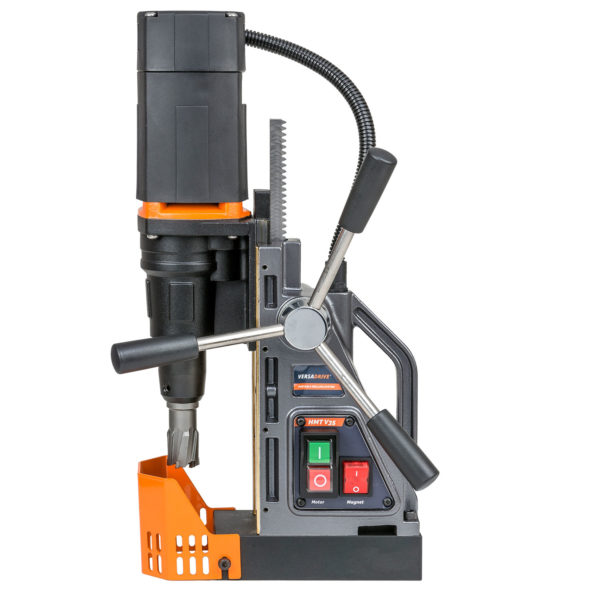

HMT VersaDrive V35 Magnetic Drilling Machine

Manufacturer: Hmt

• The HMT VersaDrive V35 is a high-performance, low-maintenance industrial quality portable magnetic drilling machine with a broaching capacity from 12mm up to 35mm diameter. It delivers exceptional performance in the most challenging of drilling environments and fabrication conditions. The V35 is extremely light weight and it’s high drilling speed makes it the ideal machine when hole cutting with TCT cutters up to 35mm.diameter and 110mm long. With its long stroke of 140mm it will also accept a wide range of VersaDrive tooling such as TurboTip drill bits, twist drills, countersinks, drill sinks, step drills and many others.




  Read more

  Features:

  With its powerful 850 watt motor and high speed gearbox, the V35 is perfectly optimised for broaching with structural size CarbideMax TCT cutters from 12-32mm.

  The Versadrive V35 also has an exceptional long stroke when compared with other machines in its class, capable of taking cutters up to 110mm long.

  The Versadrive V35 machine is supplied in a robust plastic Versadrive Stakit base 200 tool case with foam inserts to help protect the machine. It incorporates seamlessly into the Versadrive Stakit system for easy transportation for use on site or in the workshop.

  Specification:

  Annular Hole Cutters: 12 – 35mmø

  Maximum Cutter length: 110mm

  Twist Drill Range: 3 – 12mm

  Length: 220mm

  Width: 173mm

  Height Adjustable: 305-445mm

  Stroke: 140 mm

  Magnet dimensions (L X W) 160 x 80mm

  Magnetic Force: 1000 kgs

  Motor Power: 900 W

  No load speed: 750 RPM

  Arbor 19,05 mm (¾”) Weldon

  Weight: 9.5kg

  Included as Standard: Handles, Heavy Duty Metal Guard System, VersaDrive Rapid-Lock Weldon Adapter, Stakit 200 Site Case & Gravity Fed Coolant System.

  2 Year when registered.
