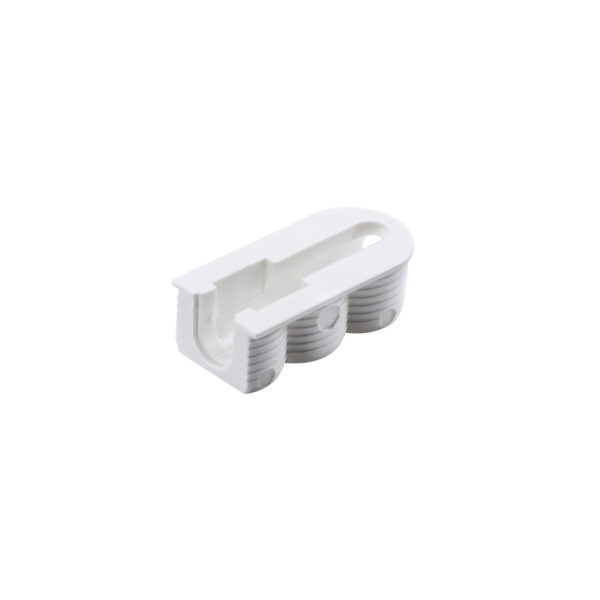

Lamello Cabineo X Connectors – White
Klarna 0% finance available on orders over £99 inc. vat
Product Overview
Manufacturer: Lamello
-
Lamello Cabineo X is a connector for cabinets and shelves that can be used with all CNC machines and is pressed into place in the workshop or on site. Due to the open housing, it is possible to insert a Cabineo screw from the top and screw it into the counterpart with a hexagon bit. Using it with screws, Cabineo X is ideal when installing shelves into already joined cabinets or when assembling corner joints.
Read more
Features:
Through the open Cabineo X housing, one of the Cabineo screws is inserted and screwed into the counterpiece with the hex bit.
When combined with shelf supports, Cabineo X prevents shelves from pulling out.
The one-piece connector convinces with its high clamping force and requires no additional alignment aids such as wooden dowels, for example.

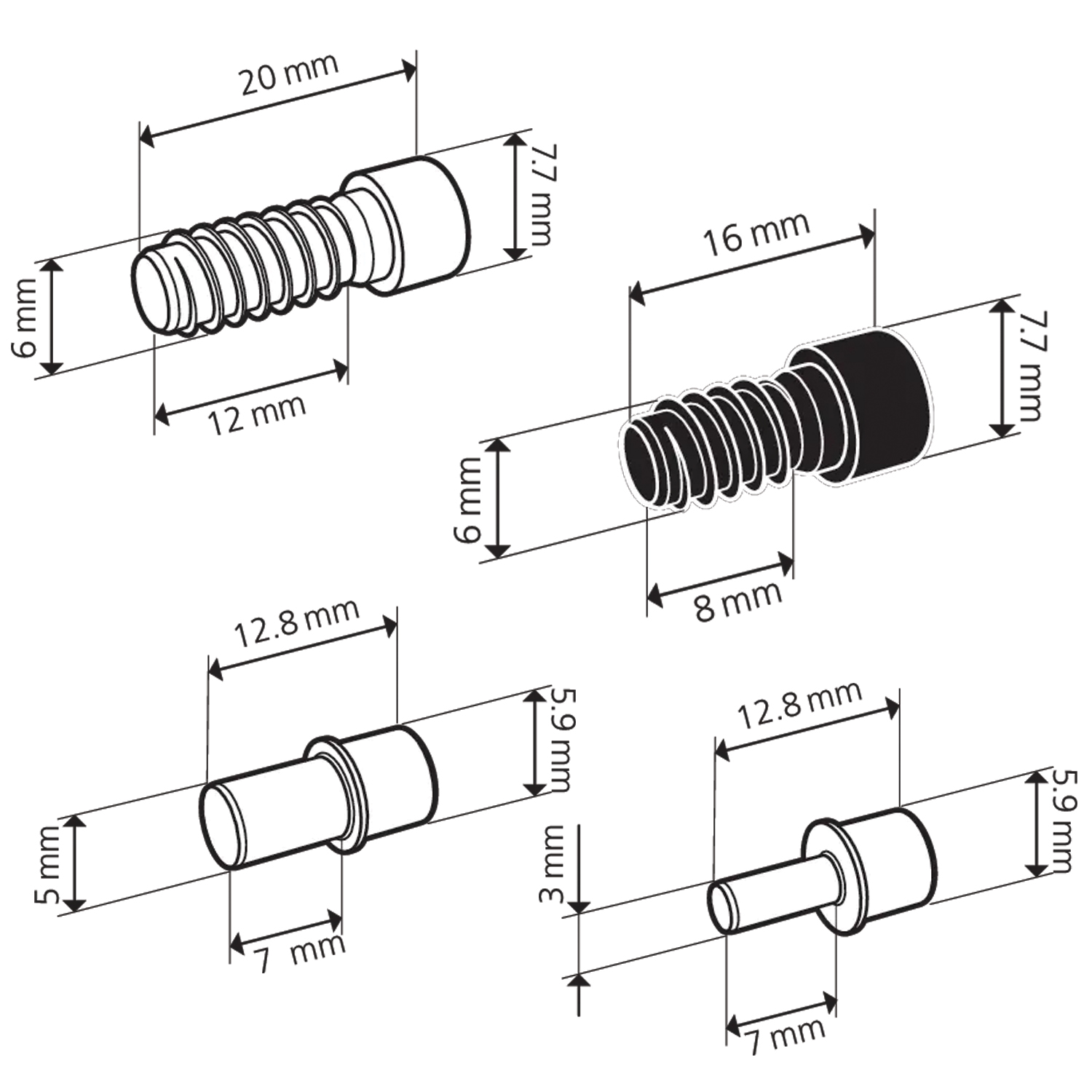

In combination with the adjustable shelf supports (diameter 3 mm or 5 mm), the Cabineo X can secure the shelf against lifting and pulling out. In addition, angled shelves can be made without difficulty.
Specification:

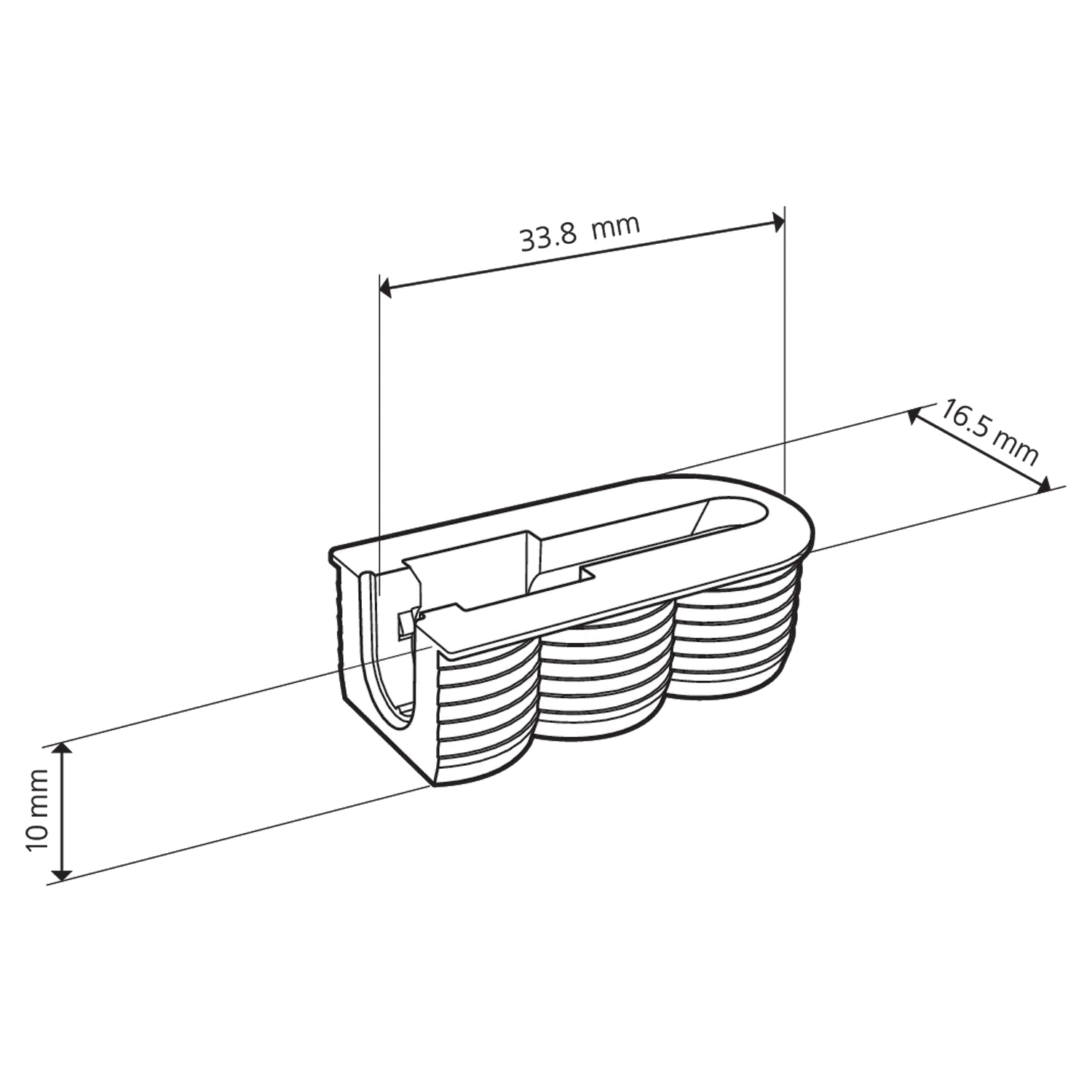

Dimensions (mm): 33.8 x 16.5 x 10.8 mm.
Cutter: Ø 12 mm or smaller.
Drill: Ø 5 mm or Ø 15mm.
Material plate: Fiberglass reinforced plastic.
Installation tolerance: Lengthwise ± 0.5 mm (Cabineo ± 0.1 mm).
Genuine Lamello accessory from an authorised partner:
186360 – Cabineo X Furniture Connectors x500
186361 – Cabineo X Furniture Connectors x2000
