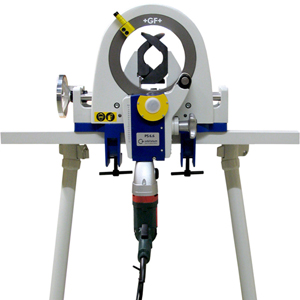

Orbitalum PS 6.6 Portable Tube Cutting Saw
Tube cutting made easy! For cutting thin-walled stainless-steel tubes and elbows using the superior ‘Planetary Cutting Technology’.
Deformation-free clamping system by integrated clamping jaws made from hardened aluminium-cast for different tube diameters to provide flexibility for on-site applications.
No rework necessary because of a burr-free and square cut Cold cutting process prevents corrosion.

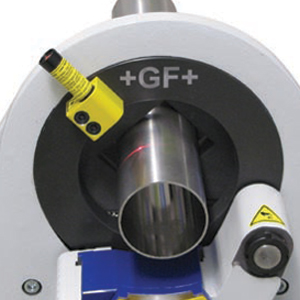

Integrated laser pointer to determine the cut-off point.
Orbital cutting process saves time
*Available with press fitting blade/bevel combination cutters
Speed: 30 – 160rpm
OD Tubes: 50* – 170mm
OD Elbows: 50* – 170mm
Max. Wall Thickness: 3mm
Dimensions: 480 x 230 x 600mm
Vibration Level (EN 28662, part 1): < 2.5 m/s2
Sound pressure level at workplace: approx. 75 dB (A)
Included as Standard: Aluminium Clamping Jaws, Robust Case, Saw Blade, Tool Bag with Tools & Tube of Saw Blade Lubricant.
* It is possible to cut tubes with an outer diameter min. 30 mm by using additional clamping (accessory, Code 790 048 380). These clamping jaws are delivered as a standard with the PS 4.5.
