Trend H/JIG/C Two Part Skeleton Hinge Jig Kit

Calculating latest stock
TREND H/JIG/C 2PT SKELETON HINGE JIG KIT
Code: 48625
Part No: HJIGCXTRE
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:8
FREE Trend Corner Chisel & Cutter
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
Derby
3 in stock
Out of stock
Nottingham
1 in stock
Out of stock
Burton
1 in stock
Out of stock
Mansfield
2 in stock
Out of stock
Chesterfield
1 in stock
Out of stock
£199.95 each
exc. VAT
£239.94 each
inc. VAT
Add to order

Product Overview

Manufacturer: Trend

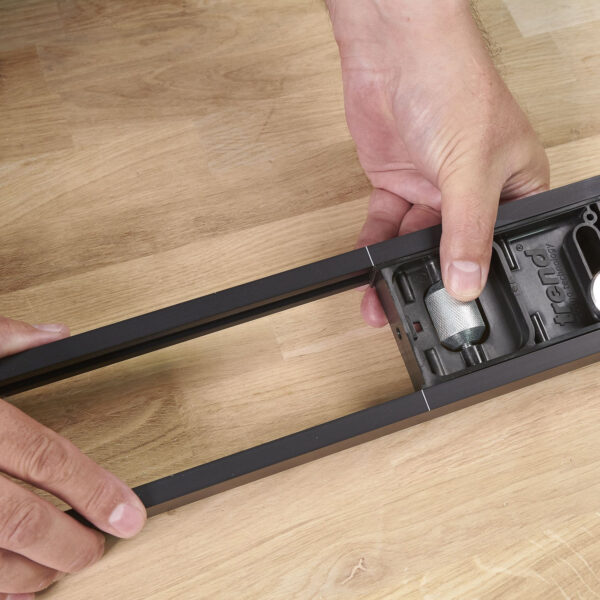

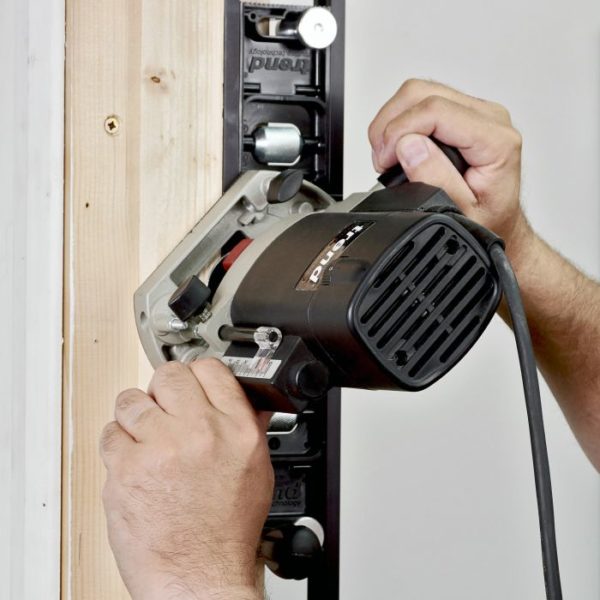

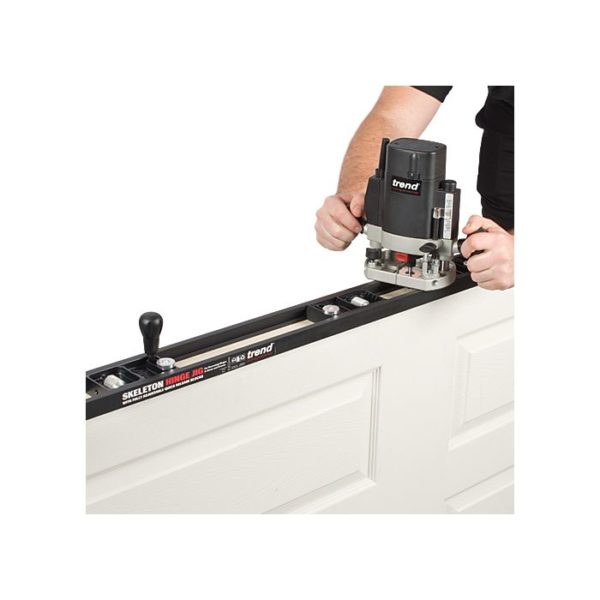

  • Trend H/JIG/C is a two-part aluminium extrusion contractor jig for recessing hinges in wooden doors and frames, when used in conjunction with a plunge router or trimmer.  Each Trend H/JIG/C Kit comes with FREE Trend C/CHISEL HSS Corner Chisel & BR04X1/4TC Hinge Cutter Worth £49.13.


    Easy to use with minimal set-up time, completing the job quickly and accurately.

    Can be used on-site or in joinery workshops, to increase productivity.

    Fully adjustable quick-release apertures for fire door requirements and renovation work.

    Ideal for fitting a new door in an old frame – whether it be internal or external doors.

    No need for marking out in the conventional way.

    Quick and simple to set-up as the hinge is used as the pattern.

    Clean and accurate recesses are achieved every time.

    Suitable for timber based doors and square butt hinges.

    Adjustable edge guides with three pre-set hinge widths: 20mm, 25mm and 30mm.

    Use with any ¼” router and 12mm diameter long reach straight router cutter.

    Supplied with a 16mm template guide – certain makes and models of router may require a Unibase to accept the guide bush.

    Trend recommend using the GB160 16mm template guide bush with a 10mm spigot length.

    Most makes and models of router can be used with a Trend UNIBASE to accept the Trend range of template guide bushes for optimum accuracy.

    Hinge sizes possible:

    Length min/max: 67mm or 2 5/8” / 127mm or 5”

    Width min/max: 12.7mm or ½” / 35mm or 1 3/8”

    Maximum width in 35mm rebate: 23mm

    Maximum width in 44mm rebate: 32mm

    Door sizes possible:

    Height min/max: 1956mm or 6′ 5" / 2100mm or 6′ 10"

    Thickness min/max: 16mm or 5/8" / 51mm or 2”

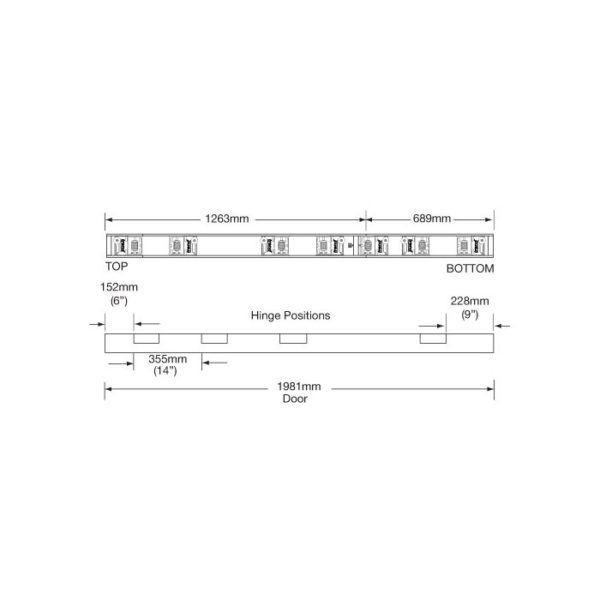

    Hinge Jig Specification:

    Edge stops thickness: 6mm

    Jig overall length: 1956 mm

    Plate thickness: 3mm

    Fixed stop maximum thickness: 25mm (max. hinge leaf width is 22mm / 35mm doors)

    Weight: 2.9kg

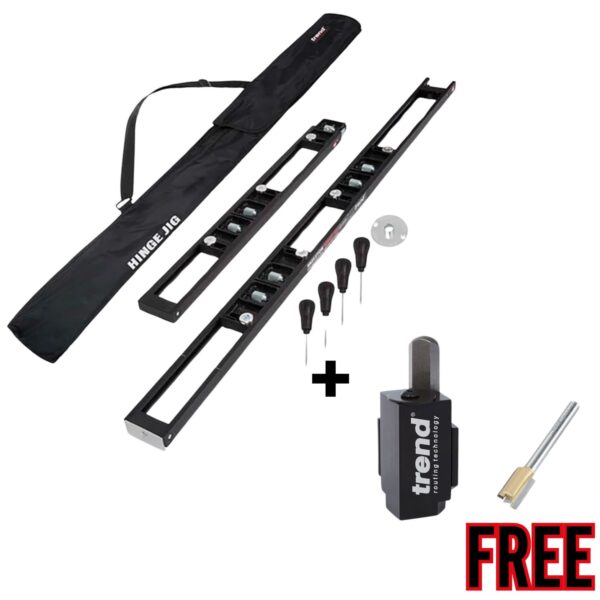

    Included as Standard: 3 x aperture block assemblies, 4 x bradawls, 16mm guide bush & fabric storage case.
