TREND KWJ750P 750MM PRO WORKTOP JIG
Code: 48055
Part No: KWJ750PTRE
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:181

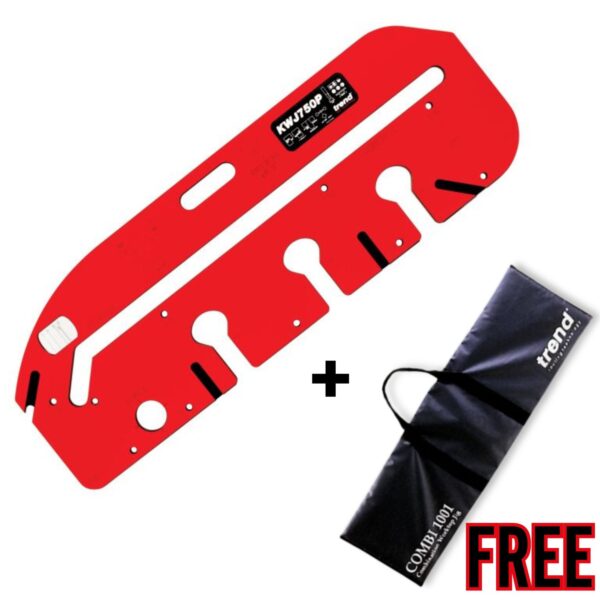

FREE Carry Case list: £39.84+vat
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
Derby
169 in stock
Out of stock
Nottingham
3 in stock
Out of stock
Burton
3 in stock
Out of stock
Mansfield
3 in stock
Out of stock
Chesterfield
3 in stock
Out of stock
£105.00 each
exc. VAT
£126.00 each
inc. VAT
Add to order

Product Overview

Manufacturer: Trend

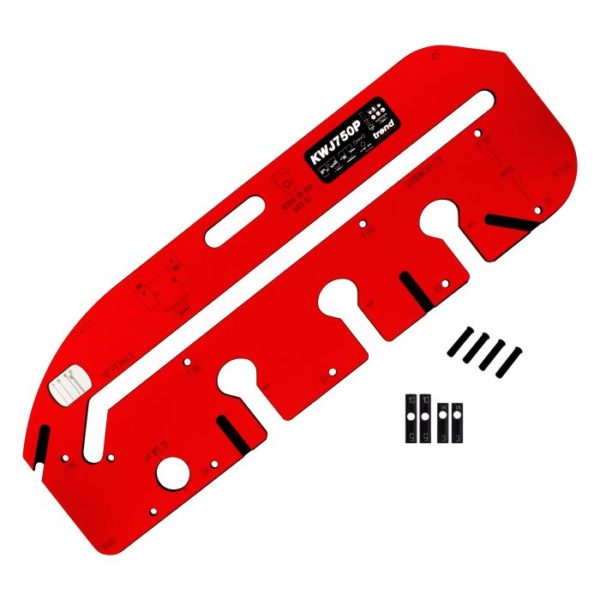

  • Trend KWJ750P is a professional multi-material jig for routing worktop joints from 150mm to 750mm, when used in conjunction with a plunge router.


    Manufactured from 12mm CNC-machined compact grade High Pressure Laminate for maximum precision, strength and durability.

    All settings are done from the front edge, eliminating any discrepancies from scribing or when using non-standard width worktops.

    Easy set reference window for fast set up for any backset, by simply aligning to a measured line.

    3, 5, 10, 24 and 35mm backset options to meet the demands of new materials, edge profiles and trends.

    Flush edge compatibility allows worktops to be cut flush with door faces for handle-less contemporary styles, without additional measuring or marking up.

    Single pass joint cutting on narrower backsets, with tinner workshops, minimises strain on the router and extends cutter life.

    Cut a full male and female joint, in just 15 minutes, including set-up time.

    Compatible with a multitude of worktop materials, including compact laminate, composite, solid wood and chipboard laminate.

    No set worktop width restrictions and no need for alignment pins for worktop widths.

    Simple intuitive setup; measure, mark, clamp and cut.

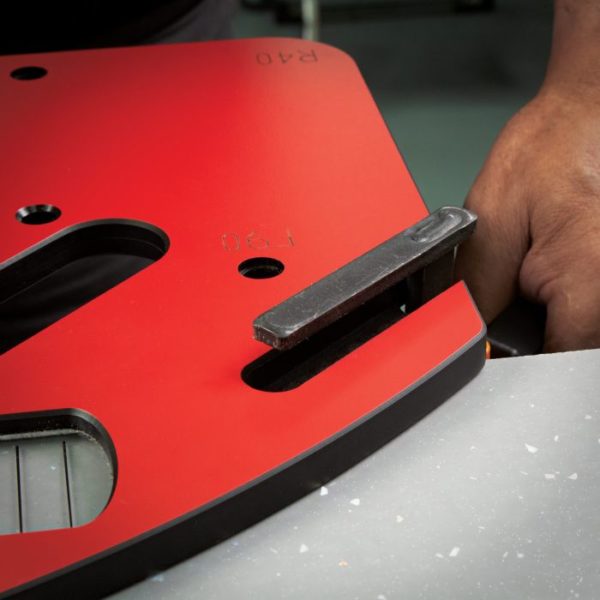

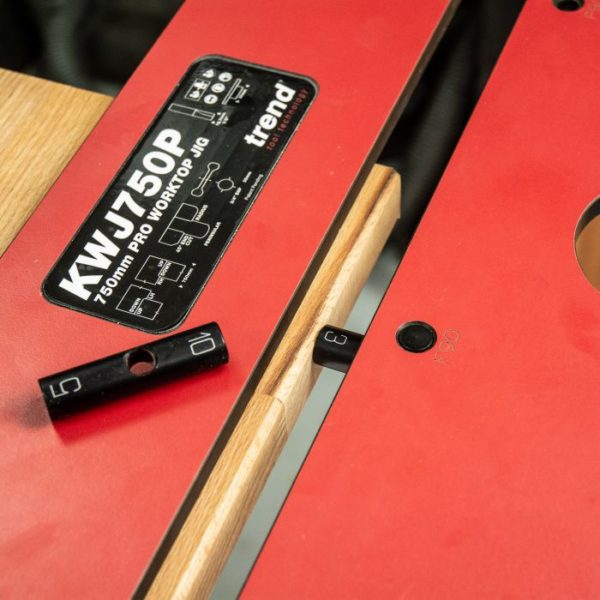

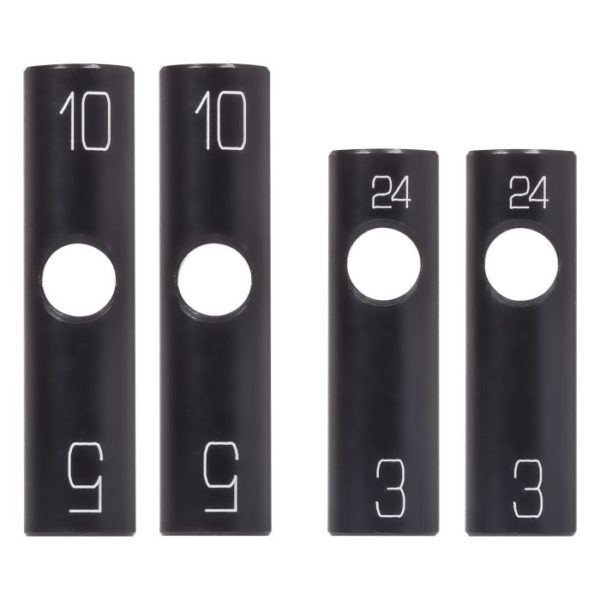

    Unique backset wedges for consistent and easy setting.

    Edge profile compatibility for square edge, small radius, postform radius and bullnose profiles.

    Clamp recess for below the surface clamping, for unrestricted routing with guide rail clamps.

    Integral panel bolt connector recessing template with easy spanner access.

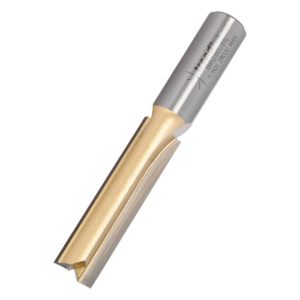

    Use with any 1300W+ ½” router, 12.7mm diameter straight router cutter x 50mm cutting length, 30mm template guide and 2 x clamps.

    Trend recommend using the GB30/A 30mm template guide bush with a 10mm spigot length.

    Most makes and models of router can be used with a Trend UNIBASE to accept the Trend range of template guide bushes for optimum accuracy.

    Tip: the jig pegs are a snug fit for maximum precision and optimum accuracy. Tapping the pegs in with a mallet until flush is recommended.

    Supplied with clear comprehensive instructions.
