Product Overview

Manufacturer: Weld Star

  • Weld star SG2 (G3Si1) MIG welding wire is manufactured using green wire which is produced with virgin raw materials and sourced from specialised steel mills. The results are a consistent quality and reliable MIG welding wire with good welding characteristics.

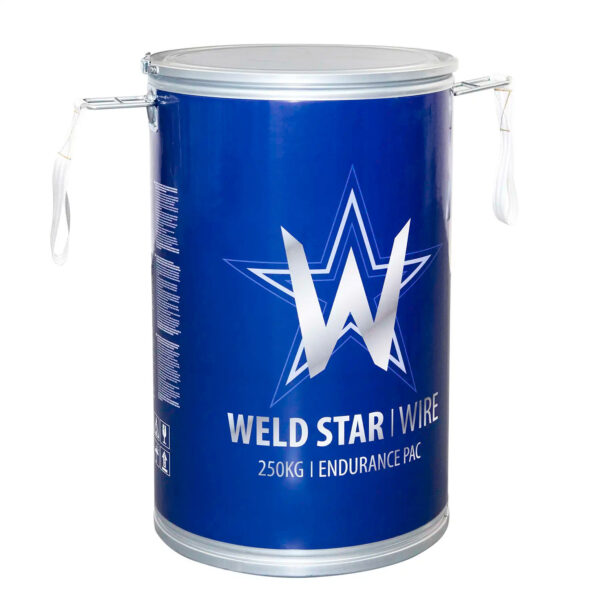

    The Endurance bulk wire drum system offers a high productivity solution for continuous high volume welding applications.

    A copper coated solid wire suitable for single pass and multipass applications.

    Suitable for the welding of unalloyed and low-alloyed carbon-manganese steels.

    Good mechanical properties at sub-zero temperatures down to -40°C.

    Precision layer wound for superior wire feeding characteristics

    Typically used on boilers, industrial machinery, bridges, shipbuilding, automotive, rail, structural and engineering fabrications etc.

    Standards:

    EN/ISO-Standard – 14341-A AWS-Standard – A5.18

    EN/ISO-Classification – G 42 3 C1/42 4 M21 3Si1 AWS-Classification – ER70S-6

    Typical Base Materials:

    S185, S235, S275, S355 – Grade A, B, D, AH32 to DH36 – L210, L240, L290,

    L360, L240NB, L290NB, L360NB, L360QB, L240MB, L290MB, L360MB,

    L415MB – X42, X46, X52, X60 – P235T1, P235T2, P275T1 – P275T2, P355N

    – P235GH, P265GH, P295GH, P355GH – S275, S355, S420, S275M, S275ML,

    S355M, S355ML, S420M, S420ML*

    * Illustrative, not exhaustive list

    Welding Positions:

    EN ISO 6947 – PA, PB, PC, PD, PE, PF, PG

    Approximate Welding Parameters.

    ø (mm) 0.80

    Amps   60 – 200

    Volts    18 – 24

    ø (mm) 1.0

    Amps   80 – 300

    Volts   18 – 32

    ø (mm) 1.2

    Amps   120 – 380

    Volts    18 – 34

    Mechanical specifications (Typical)-C1

    Tensile Strength (N/mm²) 540

    Yield strength (N/mm²)  440

    Elongation (%) 30

    Impact Strength (J) 70

    Test temperature -30ºC

    Mechanical Properties (Typical) – M21

    Tensile Strength (N/mm2) 580

    Yield Strength (N/mm2) 460

    Elongation (%) 26

    Impact Strength (J) 90

    Test Temperature -40ºC

    Mechanical properties are approximate and may vary based on the heat, shielding gas, welding parameters and other factors.

    Typical Chemical Composition %

    C – 0.07%, Si – 0.85%, Mn – 1.45%, P – <0.025%, S – <0.025%, Cu%a – <0.35%, Cr – <0.15%, Ni – <0.15%, Mo – <0.15%, Al – <0.020%, V – <0.030%, Zr+Ti – <0.15%.
