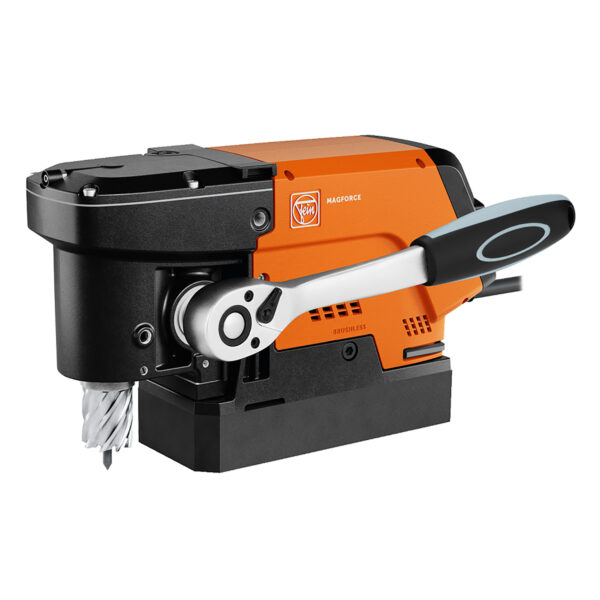

Fein KBC36 36mm Magforce Compact Mag Drill

Calculating latest stock
Code: 35990
Part No: KBC36110FEI
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:1
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
1 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
£859.00 each
exc. VAT
£1,030.80 each
inc. VAT
Add to order

Product Overview

Manufacturer: Fein

  • TheFein KBC36 110V 36mm Magforce Compact Mag Drill is an extremely small and light variable speed mag drill with a core drilling performance characterised by high precision and quality. Tough enough for holes with diameters of up to 36 mm with an extremely small at of only 169mm high, 290mm long and only 8.5kg this is an extremely powerful small package.


    Extremely low wear and long-life tool designed for accurate drilling results in industry and manual trades.

    Very powerful and maintenance-free brushless 1200 W high-power motor with high-speed stability for continuously fast work progress as well as forward / reverse running and electronic speed setting for all drilling applications, such as core drilling, twist drilling and tapping and countersinking.

    High gearbox positioning for optimum view of the drilling point.

    Large installation space under the drill spindle with a stroke range of 46 mm.

    Space-saving operation on both sides with ratchet.

    Combined drive shaft, 1/2” square and 8 mm hexagon socket.

    Intuitive operating concept avoids mix-ups and can be clearly seen by the user.

    Convenient magnetic holding force display.

    Tilt sensor stops the drill motor when the tool slips or tilts.

    Integrated handle.

    Speed saving "memory function".

    Personal safety switch.

    Slot for 5 mm hexagon socket wrench on the tool itself.

    Internal cooling lubrication by means of hand pump.

    Ideally equipped for every job. Mobile working with the L-BOXX system.


    Max. core drill: 36mm

    Max. drilling depth: 35mm

    Max. twist drill: 16mm

    Max. countersinking: 32mm

    Max. tapping: M12

    Tool mounting: MT2

    Input: 1,200 W

    No load speed: 130 / 660 rpm

    Core bit holder. Weldon 3/4" (19mm)

    Stroke length: 46mm

    Magnetic holding force: 10,000N

    Magnetic foot dimensions. 175 x 80 mm

    Weight: 8.50 kg

    Included as Standard: 1 x ½ Rachet, 1 x 1 Swarf Hook, 1x 5 mm Hexagon Socket Wrench, 1 x ½” Socket Wrench Extension, 1 x 82mm Centering Pin, 1 x 5mm Hexagon Socket Wrench with T-handle, 1 x Coolant Pump, 1 x Contact Guard, 1 Plastic Tool Case, 1 Lashing Strap & 1 Additional Handle.

    3 Years Warranty on all Fein Power Tools when registered.
