Milwaukee L4CLLP Rechargeable Green Cross Line & Plumb Laser

Calculating latest stock
Code: 34829
Part No: L4CLLP301CMIL
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:8
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
4 in stock
Out of stock
1 in stock
Out of stock
1 in stock
Out of stock
1 in stock
Out of stock
1 in stock
Out of stock
Milwaukee Madness Power Tools
Was £289.00Now £268.77 each
exc. VAT
Was £346.80Now £322.52 each
inc. VAT
Add to order

Product Overview

Manufacturer: Milwaukee

  • The Milwaukee L4CLLP Rechargeable Green Cross Line & Plumb Laser provides an all-in-one functionality with horizontal levelling and vertical alignment.


    REDLITHIUM™ USB rechargeable green cross line laser with plumb points provides an all-in-one functionality with horizontal levelling, vertical alignment and plumb point transfer from floor to ceiling.

    Built with high intensity green diodes to provide uncompromised visibility – up to 4x better visibility vs red lasers.

    High intensity green beams provide a working range of 30 m (50 m with a detector)

    The rechargeable and removable REDLITHIUM™ USB 3.0 Ah battery provides all day run time of over 8 hours.

    1x REDLITHIUM™ USB 3.0 battery replaces up to 6,000 alkaline batteries over the lifetime of the battery.

    3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport.

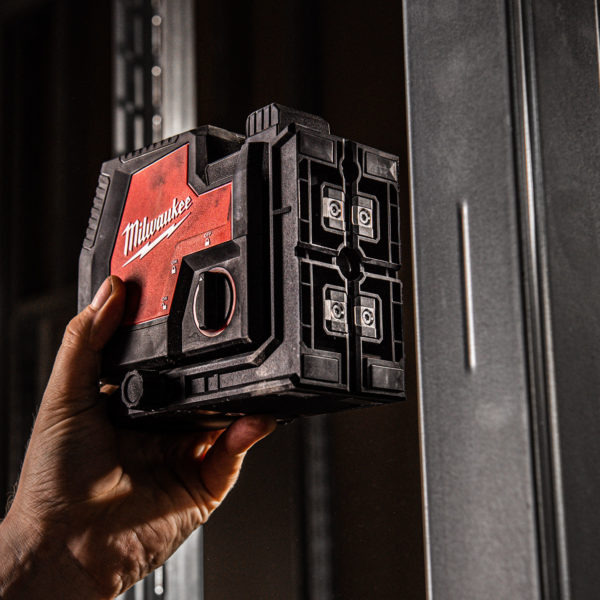

    Integrated magnetic bracket with rear mounted amplified rare earth magnets, ¼″ tripod thread and hang hole – allows attachment to steel stud, wooden stud and tripod.

    The bracket also provides the laser 360° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment.

    Detachable riser included for seeing the plumb point when placed on the ground or over steel track.

    Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops.

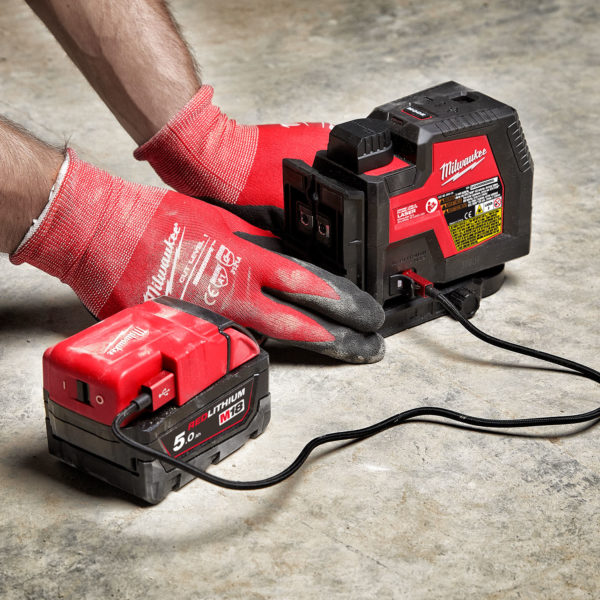

    Conveniently charge REDLITHIUM™ USB battery internally during use with micro-USB cable from USB power source or AC outlet.

    Fuel gauge on the top and side of the laser allows for fast checking of the REDLITHIUM™ USB battery charge.


    Accuracy: 0.3 mm

    Battery pack capacity: 3.0Ah

    Battery type: Li-ion

    Colour of laser line: Green

    Colour of plumb points: Green

    Compatible laser detector: LLD50

    IP protection class: IP54

    Laser classification: Class 2

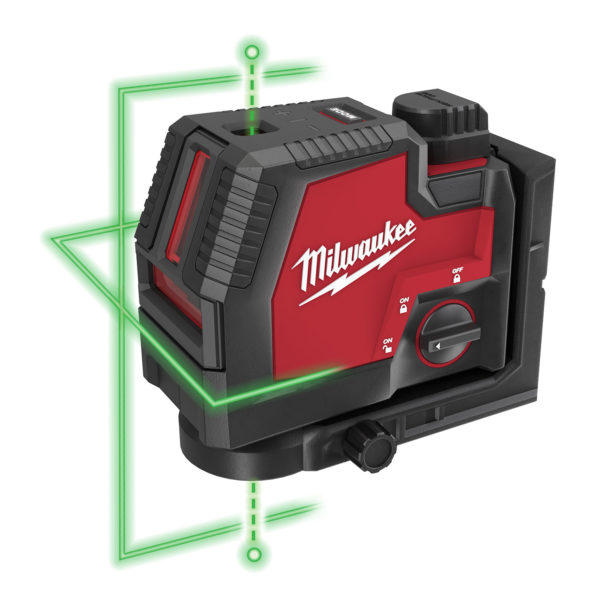

    Laser projection: 1x vertical, 1x horizontal 2x plumb points°

    Max. run time: 8 hours

    Self-levelling range: 4.0°

    Self-levelling time: 3 seconds

    Voltage: 4V

    Working range detector: 50m

    Working range visible: 30m

    Weight: 0.9kg

    Included as Standard: L4 3.0Ah Battery, USB Cable, Wall Plug, Track Clip & Case.

    Exclusive 3 Years Warranty on all Milwaukee Power Tools including Batteries & Chargers when registered.
