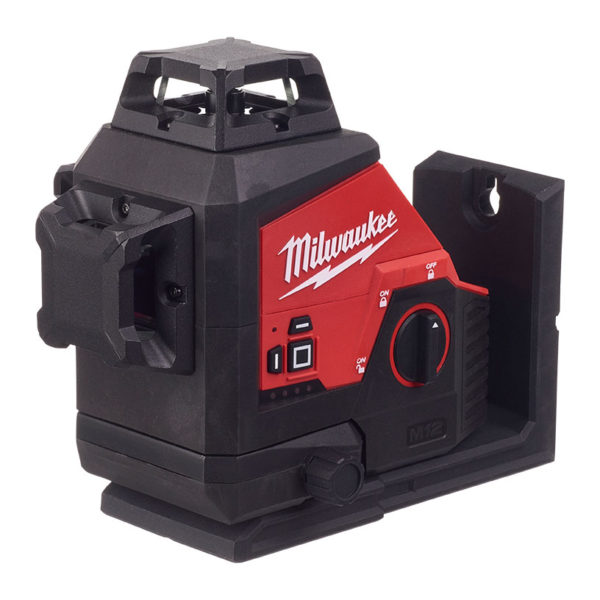

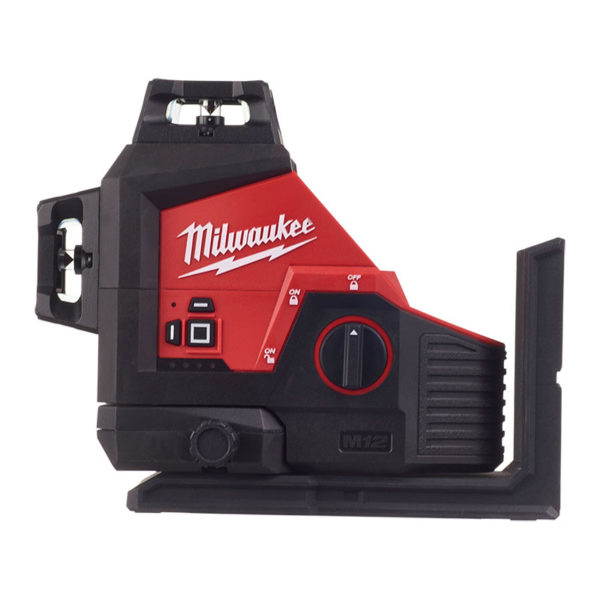

Milwaukee M123PL 12V Green 360° 3-Plane Laser Level – Body

Calculating latest stock
Code: 34816
Part No: M123PL0CMIL
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:5
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
1 in stock
Out of stock
1 in stock
Out of stock
1 in stock
Out of stock
1 in stock
Out of stock
1 in stock
Out of stock
Milwaukee Madness Power Tools
Was £399.00Now £371.07 each
exc. VAT
Was £478.80Now £445.28 each
inc. VAT
Add to order

Product Overview

Manufacturer: Milwaukee

  • Milwaukee M12 3PL 12V Green 360° 3 Plane Laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, levelling, squaring, and transfers allowing you to easily layout large spaces with one tool.


    Built with high intensity green diodes to provide maximised visibility – up to 4x better visibility vs red lasers.

    High intensity green beams provide a working range of 38 m and up to 100 m with a detector.

    Provides all-day run time of 15+ hours with an M12 B4 battery pack.

    3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport.

    Integrated magnetic bracket with rear mounted amplified rare earth magnets, ¼″ and ⅝″ tripod thread and hang hole – allows attachment to steel stud, wooden stud and tripod.

    The bracket also provides the laser 330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment.

    Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1m drops.

    Flexible battery system: works with all MILWAUKEE® M12™batteries.


    Accuracy: 0.3 mm/m

    Battery type: Li-ion

    Colour of laser line: Green

    Compatible laser detector: LLD50 / LRD100

    Laser classification: Class 2

    Laser projection: 2x vertical, 1x horizontal

    Max. Run time with M12 B4 battery: 15 h

    Self-levelling range: 4.0°

    Self-levelling time: 3 s

    Standard equipment: Track clip, HIVST

    Voltage: 12 V

    Working range detector: 50 / 100 m

    Working range visible: 38.0 m

    Weight: 1.5 kg

    Body only – not supplied with batteries or charger.

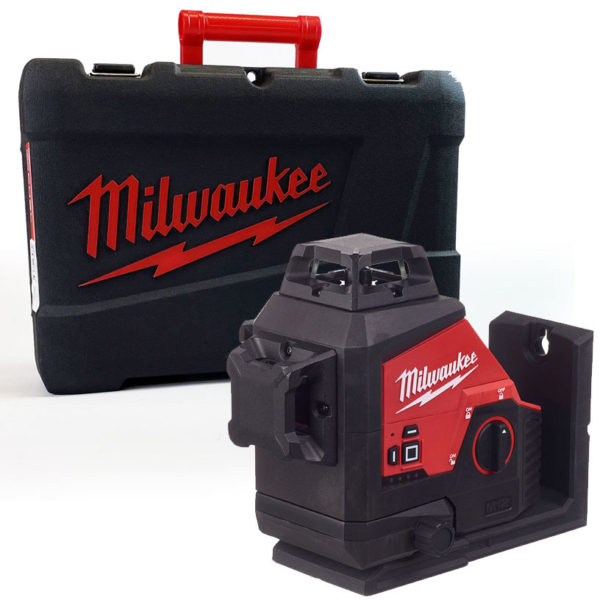

    Included as Standard: Track Clip & Case.

    Exclusive 3 Years Warranty on all Milwaukee Power Tools including Batteries & Chargers when registered.
